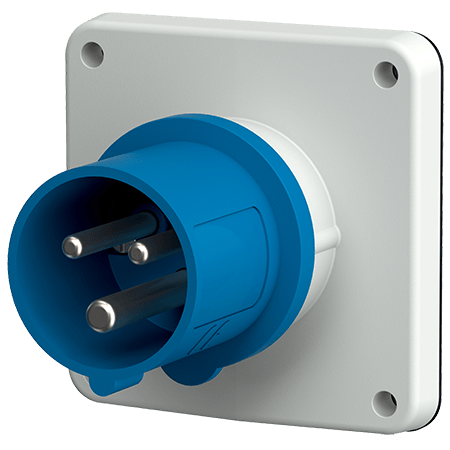

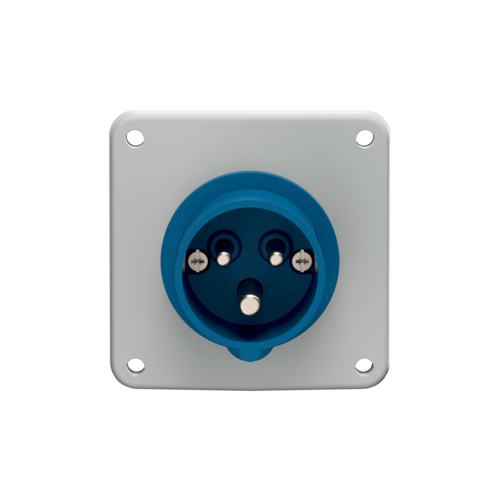

Panel mounted inlet 812

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
nickel-plated contacts

a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking

Part no.812
EAN4015394116714
Std. Pack. 10 Qty.

Technical specifications

Panel mounted inlet 812

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	nickel plated contacts
Protection type	IP 44
Weight	136 g
Declaration of Conformity	CN,CQC DE,VDE (ÜG)

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted inlet 812

Product info Panel mounted inlet 812 PDF, 184 KB

Manufacturer‘s declaration Panel mounted inlet 812 PDF, 37 KB

CAD data STP Panel mounted inlet 812 ZIP, 229 KB

CAD data 3D DWG Panel mounted inlet 812 ZIP, 795 KB

Dimensional drawing portrait Panel mounted inlet 812 PNG, 97 KB

Dimensional drawing landscape format Panel mounted inlet 812 PNG, 98 KB

Appropriate accessories

Panel mounted inlet 812

Plug guard

Part no. 41416
