Show all Connectors / Show all Connector PowerTOP Xtra with ErgoCONTACT

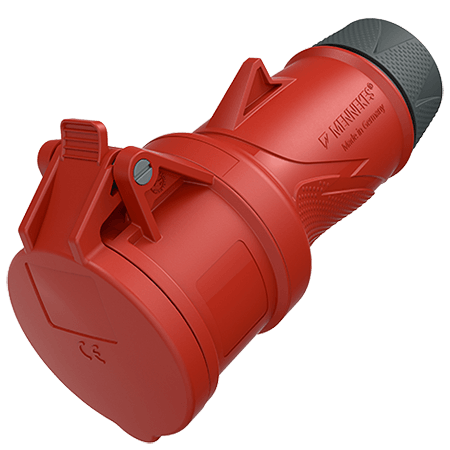

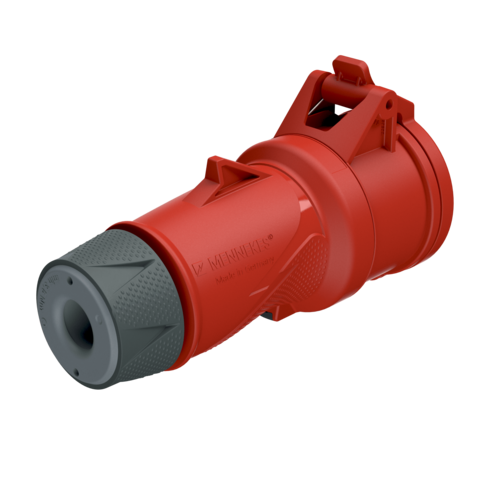

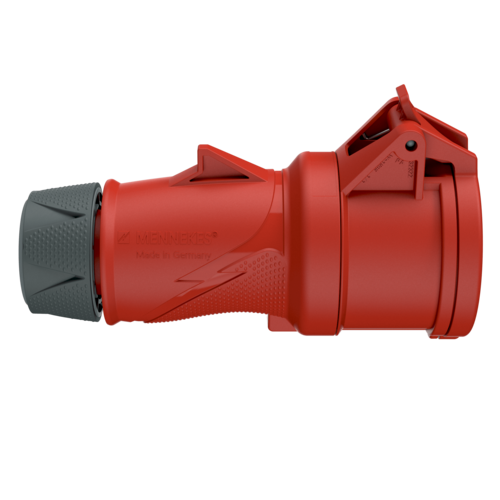

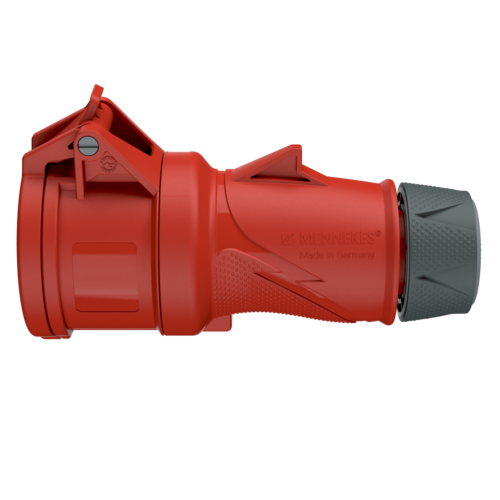

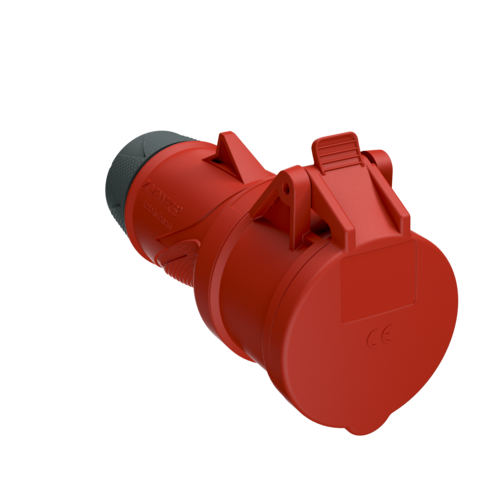

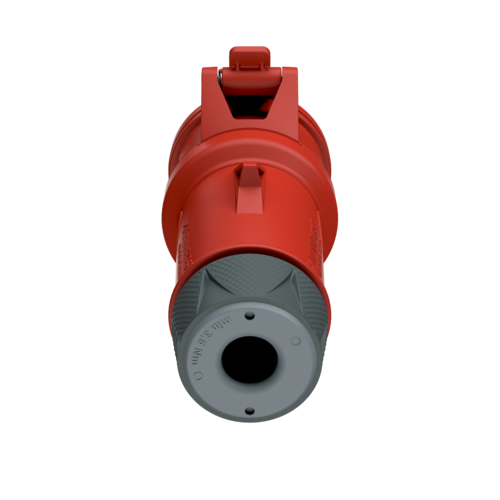

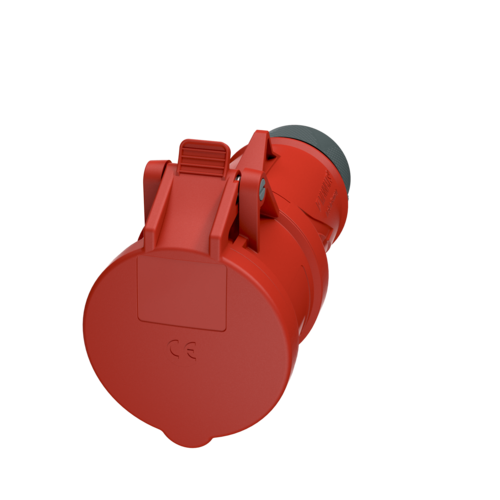

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14516

Connector PowerTOP Xtra with ErgoCONTACT 14516

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves...Read more
Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra connector replaces the ProTOP connector 126
  • Part no.14516
  • EAN4015394296768
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14516

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact X-CONTACT
Protection type IP54
Weight 385 g
Certifications VDE

Datasheets & Downloads

Connector PowerTOP Xtra with ErgoCONTACT 14516

Product infoConnector PowerTOP Xtra with ErgoCONTACT 14516 PDF, 1 MB
Manufacturer‘s declarationConnector PowerTOP Xtra with ErgoCONTACT 14516 PDF, 210 KB
CAD data STPConnector PowerTOP Xtra with ErgoCONTACT 14516 ZIP, 2 MB
CAD data 3D DWGConnector PowerTOP Xtra with ErgoCONTACT 14516 ZIP, 4 MB
Mounting instructionsConnector PowerTOP Xtra with ErgoCONTACT 14516 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP Xtra with ErgoCONTACT 14516 PNG, 209 KB
Dimensional drawing landscape formatConnector PowerTOP Xtra with ErgoCONTACT 14516 PNG, 230 KB

Videos

Connector PowerTOP Xtra with ErgoCONTACT 14516

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Connector PowerTOP Xtra with ErgoCONTACT 14516

REACh
RoHS

Appropriate products

Connector PowerTOP Xtra with ErgoCONTACT 14516 with IP54

MENNEKES Panel mounted receptacle 1496

Panel mounted receptacle

Part no. 1496

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5613406G

Wall mounted receptacle DUOi

Part no. 5613406G

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13516

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13516

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more

Appropriate accessories

Connector PowerTOP Xtra with ErgoCONTACT 14516

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A

more
