Show all Cepex Design / Show all Cepex wall mounted receptacle

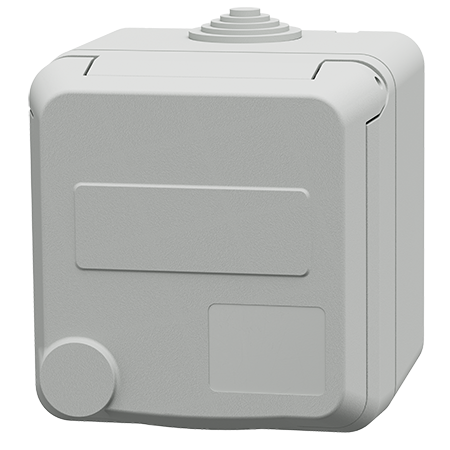

MENNEKES Cepex wall mounted receptacle, light grey 4807

Cepex wall mounted receptacle, light grey 4807

Ampere 16 A 32 A
  • screw terminals
  • Part no.4807
  • EAN4015394315131
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle, light grey 4807

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 369 g

Datasheets & Downloads

Cepex wall mounted receptacle, light grey 4807

Product infoCepex wall mounted receptacle, light grey 4807 PDF, 444 KB
CAD data STPCepex wall mounted receptacle, light grey 4807 ZIP, 428 KB
CAD data 3D DWGCepex wall mounted receptacle, light grey 4807 ZIP, 716 KB
Dimensional drawing portraitCepex wall mounted receptacle, light grey 4807 PNG, 178 KB
Dimensional drawing landscape formatCepex wall mounted receptacle, light grey 4807 PNG, 249 KB
BrochuresCepex wall mounted receptacle, light grey 4807 PDF, 1 MB

Directives

Cepex wall mounted receptacle, light grey 4807

REACh
RoHS
