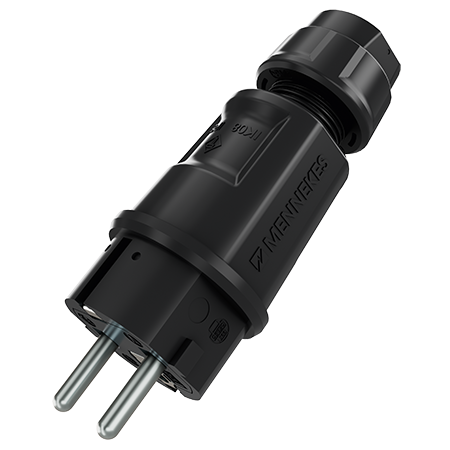

MENNEKES Plug SCHUKO® 152072

Plug SCHUKO® 152072

Ampere 16 A
  • Screw terminals
  • With combined PE-conductor acc. to German and French-Belgian standard
  • With cable gland
  • Large connection space for cables up to 3 x 2.5 mm², type H07RN-F
  • Part no.152072
  • EAN4015394311164
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Plug SCHUKO® 152072

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Enclosure material Plastic
Weight 66 g

Datasheets & Downloads

Plug SCHUKO® 152072

Product infoPlug SCHUKO® 152072 PDF, 268 KB
CAD data STPPlug SCHUKO® 152072 ZIP, 973 KB
CAD data 3D DWGPlug SCHUKO® 152072 ZIP, 529 KB
Dimensional drawing portraitPlug SCHUKO® 152072 PNG, 18 KB
Dimensional drawing landscape formatPlug SCHUKO® 152072 PNG, 126 KB

Directives

Plug SCHUKO® 152072

REACh
RoHS
