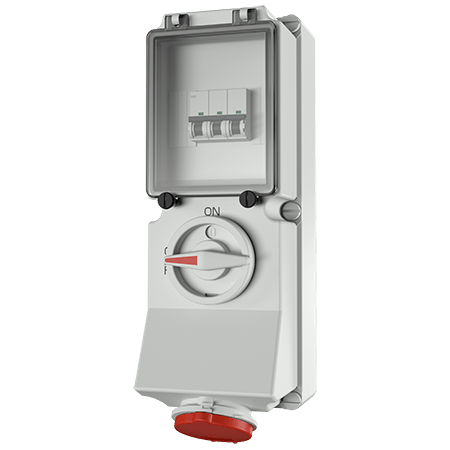

Wall mounted receptacle 7220

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • receptacles can be padlocked
  • Part no.7220
  • EAN4015394131380
  • Std. Pack. 2 Qty.

Technical specifications

Wall mounted receptacle 7220

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 2435 g
Declaration of Conformity EAC

Datasheets & Downloads

Wall mounted receptacle 7220

Product info Wall mounted receptacle 7220 PDF, 175 KB
CAD data STP Wall mounted receptacle 7220 ZIP, 1,012 KB
CAD data 3D DWG Wall mounted receptacle 7220 ZIP, 3 MB
Dimensional drawing portrait Wall mounted receptacle 7220 PNG, 131 KB
Dimensional drawing landscape format Wall mounted receptacle 7220 PNG, 133 KB
