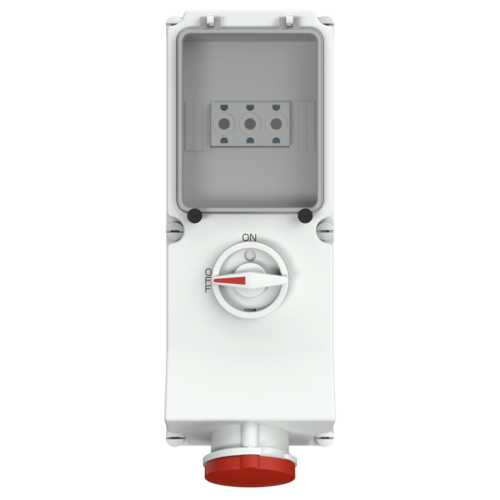

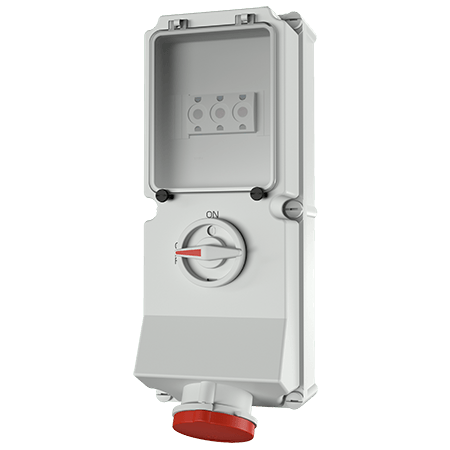

Wall mounted receptacle 6066A

Ampere 16 A 32 A 63 A

Poles

Voltage

Clock position

screw terminals
X-CONTACT®
switched

mechanical DUO-interlock
3 pole fuse socket D 02
receptacles can be padlocked

Part no.6066A
EAN4015394031253
Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 6066A

Ampere	63 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT®
Protection type	IP 44
Enclosure material	Plastic
Weight	4154 g

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted receptacle 6066A

Product info Wall mounted receptacle 6066A PDF, 173 KB

CAD data STP Wall mounted receptacle 6066A ZIP, 1 MB

CAD data 3D DWG Wall mounted receptacle 6066A ZIP, 5 MB

Dimensional drawing portrait Wall mounted receptacle 6066A PNG, 131 KB

Dimensional drawing landscape format Wall mounted receptacle 6066A PNG, 133 KB
