MENNEKES worldwide

MENNEKES

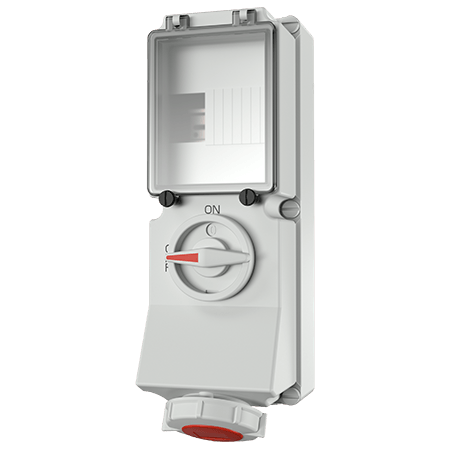

Wall mounted receptacle 5946A

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • switched
  • mechanical DUO-interlock
  • DIN rail
  • receptacles can be padlocked
  • Part no.5946A
  • EAN4015394030478
  • Std. Pack. 2 Qty.

Technical specifications

Wall mounted receptacle 5946A

Ampere 32 A
Poles 4 p
Voltage 380-440 V
Clock position 3 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Enclosure material Plastic
Weight 2102 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Wall mounted receptacle 5946A
