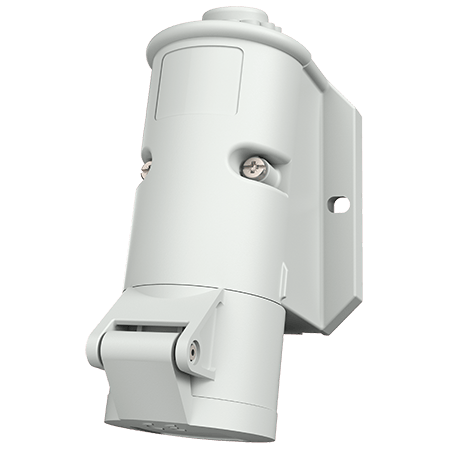

Wall mounted receptacle 1829

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1829
  • EAN4015394012627
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 1829

Ampere 16 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 189 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Wall mounted receptacle 1829

Product info Wall mounted receptacle 1829 PDF, 168 KB
CAD data STP Wall mounted receptacle 1829 ZIP, 317 KB
CAD data 3D DWG Wall mounted receptacle 1829 ZIP, 961 KB
Dimensional drawing portrait Wall mounted receptacle 1829 PNG, 101 KB
Dimensional drawing landscape format Wall mounted receptacle 1829 PNG, 101 KB

Appropriate accessories

Wall mounted receptacle 1829

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
