MENNEKES

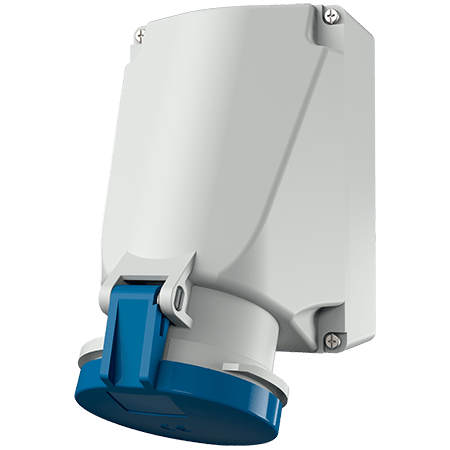

Wall mounted receptacle 1144A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contacts on request
  • Part no.1144A
  • EAN4015394007692
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 1144A

Ampere 63 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP 44
Enclosure material Plastic
Weight 925 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Wall mounted receptacle 1144A
