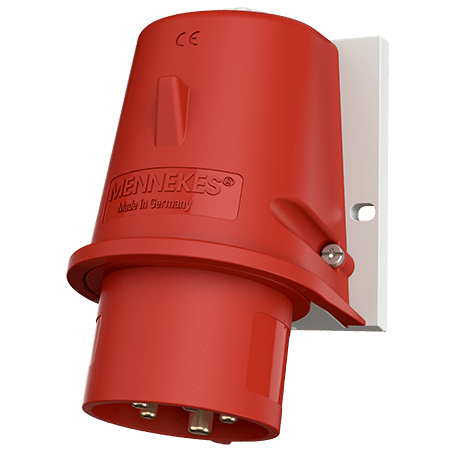

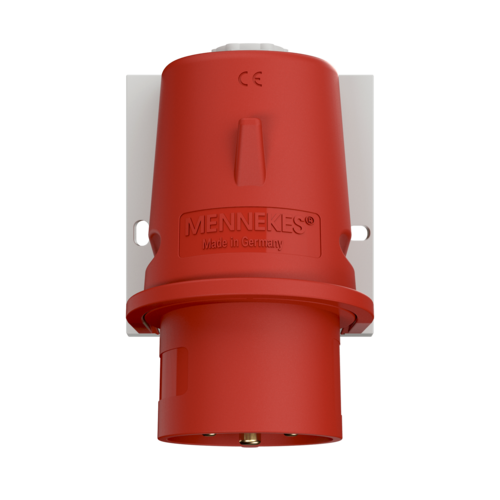

Wall mounted phase inverter inlet 3517

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
external fixing

hinged lid for retrofit see accessories

Part no.3517
EAN4015394207450
Std. Pack. 10 Qty.

Technical specifications

Wall mounted phase inverter inlet 3517

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP 44
Weight	215 g
Declaration of Conformity	VDE EAC

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted phase inverter inlet 3517

Product info Wall mounted phase inverter inlet 3517 PDF, 153 KB

Manufacturer‘s declaration Wall mounted phase inverter inlet 3517 PDF, 38 KB

Dimensional drawing portrait Wall mounted phase inverter inlet 3517 PNG, 85 KB

Dimensional drawing landscape format Wall mounted phase inverter inlet 3517 PNG, 86 KB

Appropriate accessories

Wall mounted phase inverter inlet 3517

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

Hinged lid

Part no. 41489

suitable for wall mounted inlets and phase inverters Part no. 843, 844 800, 801, 3517
