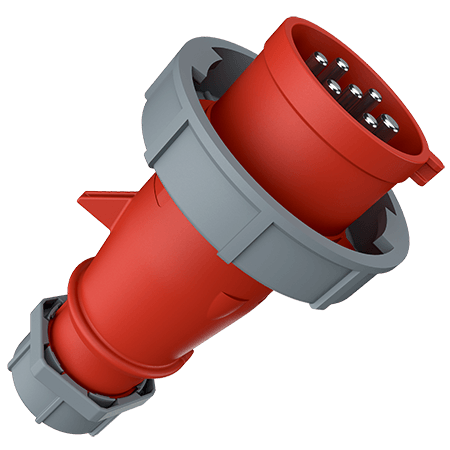

MENNEKES Plug AM-TOP 2324

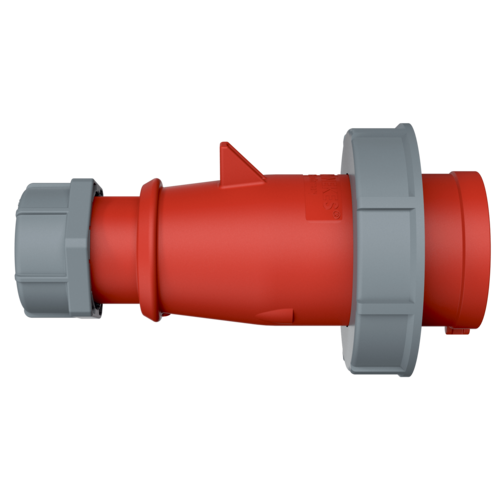

MENNEKES Plug AM-TOP 2324 images3d

Plug AM-TOP 2324

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2324
  • EAN4015394014454
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 2324

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 349 g
Declaration of Conformity EAC
CQC

Datasheets & Downloads

Plug AM-TOP 2324

Product infoPlug AM-TOP 2324 PDF, 144 KB
Manufacturer‘s declarationPlug AM-TOP 2324 PDF, 53 KB
CAD data STPPlug AM-TOP 2324 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP 2324 ZIP, 3 MB
Dimensional drawing portraitPlug AM-TOP 2324 PNG, 80 KB
Dimensional drawing landscape formatPlug AM-TOP 2324 PNG, 81 KB

Instructions

Mounting instructions Plug AM-TOP 2324 PDF, 2 MB

Appropriate accessories

Plug AM-TOP 2324

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets

more
MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more
