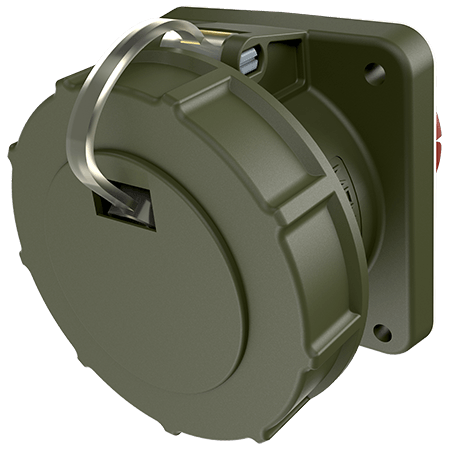

Panel mounted receptacle TM 20460

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.20460
  • EAN4015394038849
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted receptacle TM 20460

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT®
Protection type IP 67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 688 g
