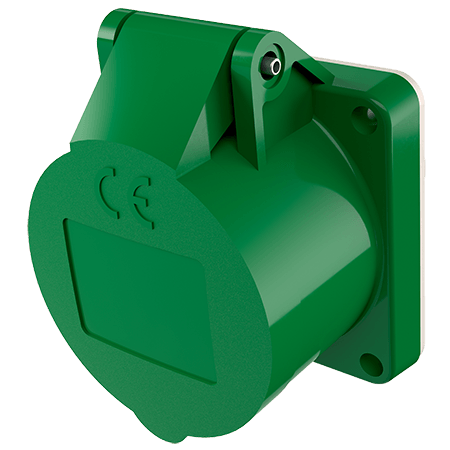

Panel mounted receptacle 612

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.612
  • EAN4015394004561
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 612

Ampere 16 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 130 g
Declaration of Conformity EAC
CQC
