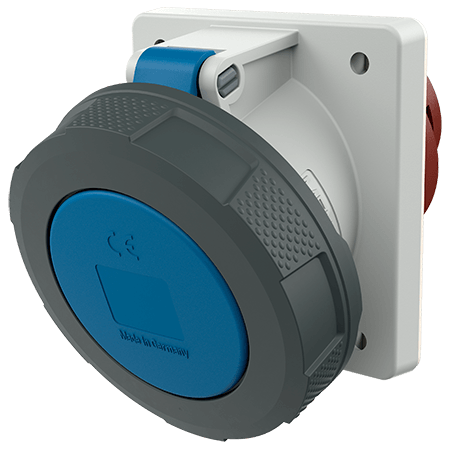

Panel mounted receptacle 3575
Voltage
Clock position
- screw terminals
- X-CONTACT
- 15° inclination
- receptacles with pilot contact: part no. + index P
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications

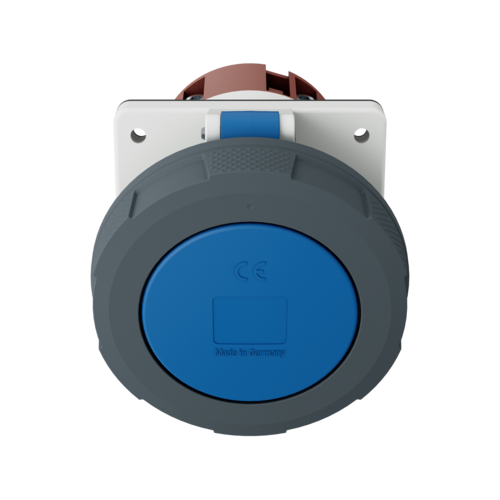

Panel mounted receptacle 3575
| Ampere | 125 A |
|---|---|
| Poles | 3 p |
| Voltage | 230 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact | X-CONTACT |
| Protection type | IP67 |
| Flange | 114x110 mm |
| Fixing hole | 90x90 mm |
| Inclination | 15 ° |
| Weight | 940 g |
| Declaration of Conformity |
VDE EAC CQC |
