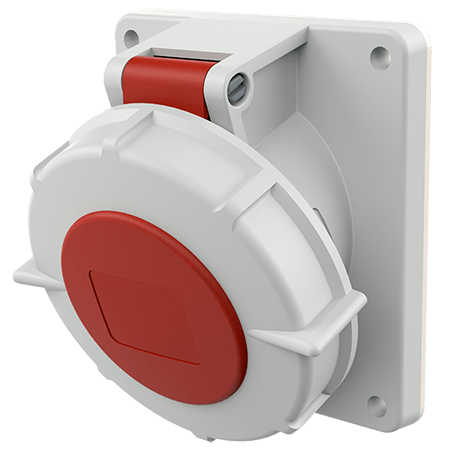

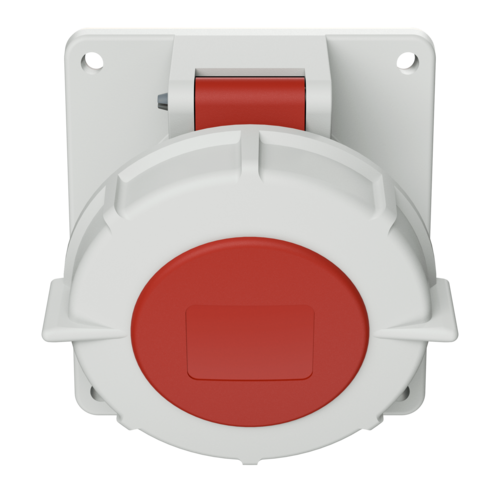

MENNEKES Panel mounted receptacle 1485
MENNEKES Panel mounted receptacle 1485 images3d

Panel mounted receptacle 1485

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • 32 A receptacles optional fitted with auxiliary contact
  • Part no.1485
  • EAN4015394011460
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1485

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 237 g
Certifications VDE
EAC
CQC

Directives

Panel mounted receptacle 1485

Appropriate products

Panel mounted receptacle 1485 with IP67

MENNEKES Connector AM-TOP 550

Connector AM-TOP

Part no. 550

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Plug AM-TOP 288

Plug AM-TOP

Part no. 288

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle 9342

Wall mounted receptacle

Part no. 9342

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
