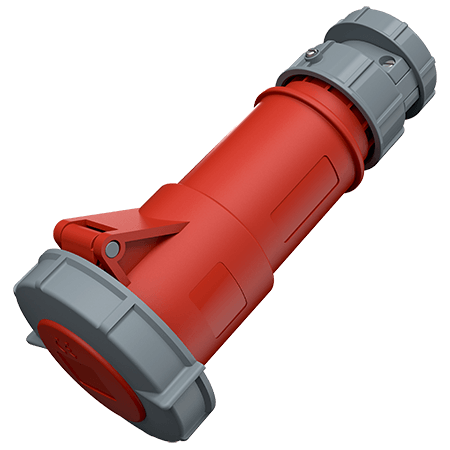

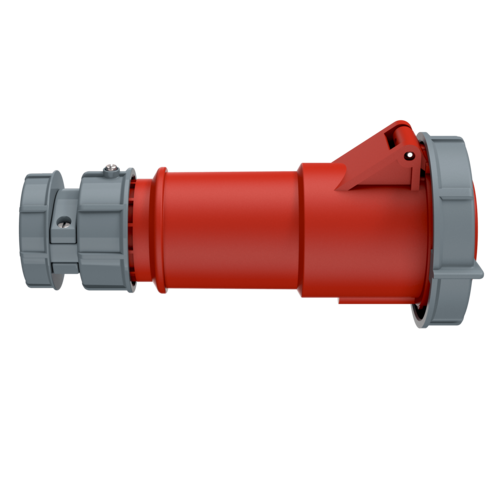

MENNEKES Connector PowerTOP 3907
MENNEKES Connector PowerTOP 3907 images3d

Connector PowerTOP 3907

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • cable gland and external cable grip
  • Part no.3907
  • EAN4015394099840
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP 3907

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
Protection type IP67
Weight 476 g
Certifications VDE
EAC
CQC

Directives

Connector PowerTOP 3907

Appropriate accessories

Connector PowerTOP 3907

MENNEKES Hanging clip 15452000

Hanging clip

Part no. 15452000

for PowerTOP plugs and connectors

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here

To the questions and answers
