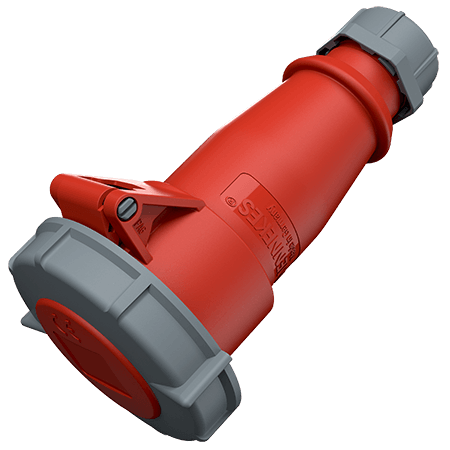

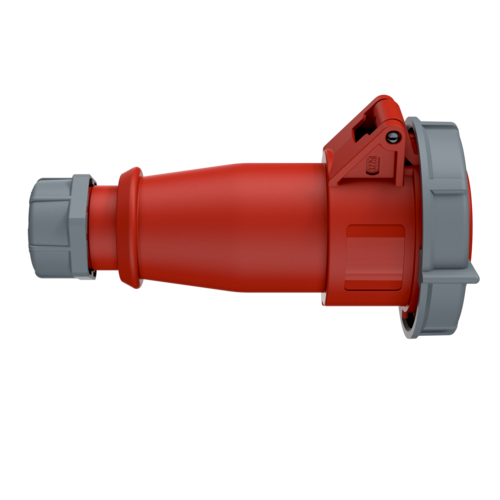

MENNEKES Connector AM-TOP 21365
MENNEKES Connector AM-TOP 21365 images3d

Connector AM-TOP 21365

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21365
  • EAN4015394040439
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 21365

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 272 g
Certifications VDE
EAC
CQC

Directives

Connector AM-TOP 21365

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
