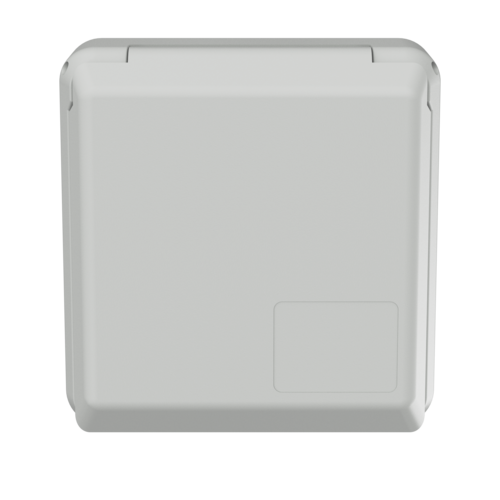

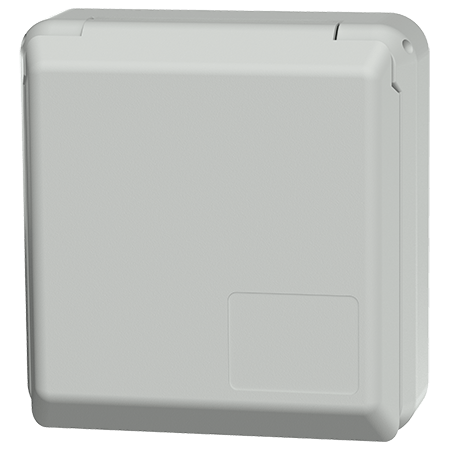

MENNEKES Cepex panel mounted receptacle 4211
MENNEKES Cepex panel mounted receptacle 4211 images3d

Cepex panel mounted receptacle 4211

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • suitable for installation in cable ducts and columns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4211
  • EAN4015394022602
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle 4211

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 189 g
Declaration of Conformity VDE
EAC

Datasheets & Downloads

Cepex panel mounted receptacle 4211

Product infoCepex panel mounted receptacle 4211 PDF, 196 KB
Dimensional drawing portraitCepex panel mounted receptacle 4211 PNG, 73 KB
Dimensional drawing landscape formatCepex panel mounted receptacle 4211 PNG, 73 KB

Appropriate accessories

Cepex panel mounted receptacle 4211

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

more
MENNEKES Cepex masking frames 41407

Cepex masking frames

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more
MENNEKES Cepex-Abdeckrahmen 41409

Cepex-Abdeckrahmen

Part no. 41409

2-fach, passend zu allen Cepex-Unterputz-und Anbausteckdosen 16 A und 32 A, zur waagerechten Montage von zwei Steckvorrichtungen

more

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
