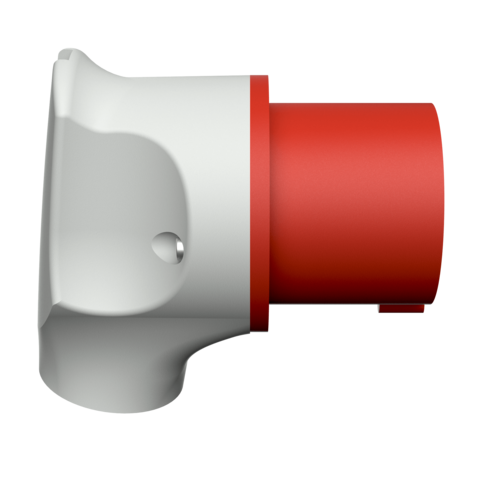

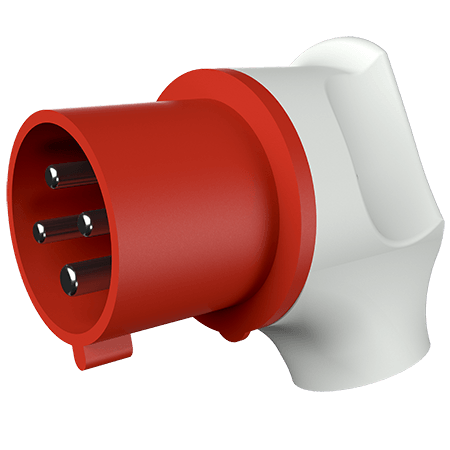

Angled plug 3987

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • with grommet
  • especially suited for use with receptacles of the Cepex range
  • Part no.3987
  • EAN4015394137191
  • Std. Pack. 10 Qty.

Technical specifications

Angled plug 3987

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 230 g
Declaration of Conformity CN,CQC
