MENNEKES

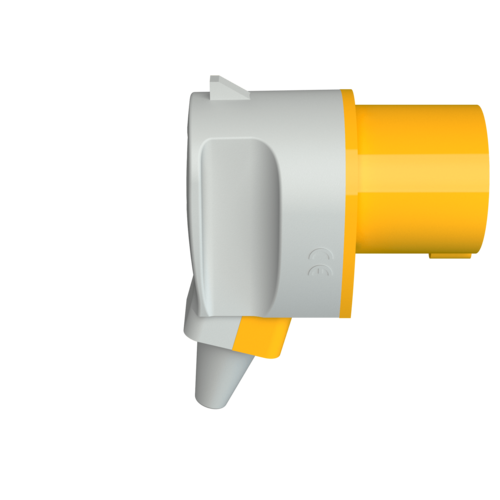

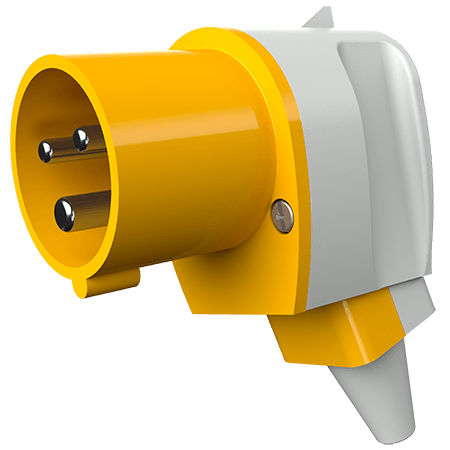

Angled plug 1410

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • with grommet
  • especially suited for use with receptacles of the Cepex range
  • Part no.1410
  • EAN4015394010401
  • Std. Pack. 10 Qty.

Technical specifications

Angled plug 1410

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 115 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Angled plug 1410
