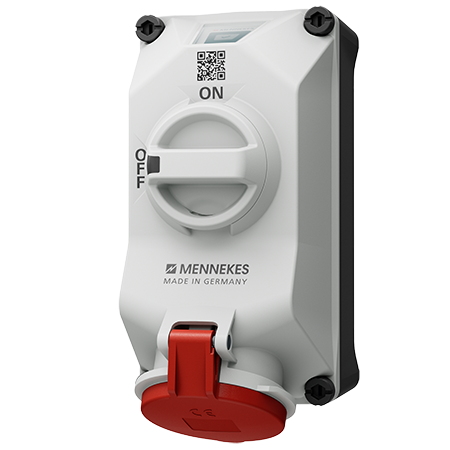

MENNEKES Wall mounted receptacle DUOi 5613411G

Wall mounted receptacle DUOi 5613411G

Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under current load, and when switched...Read more
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • receptacles can be padlocked
  • Part no.5613411G
  • EAN4015394302650
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle DUOi 5613411G

Ampere 32 A
Poles 4 p
Voltage 400-440 V
Clock position 11 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1325 g

Videos

Wall mounted receptacle DUOi 5613411G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted receptacle DUOi 5613411G
