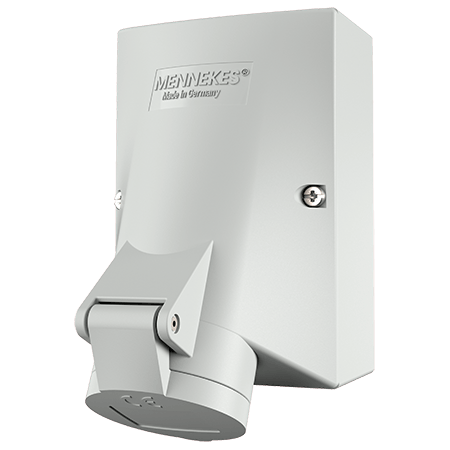

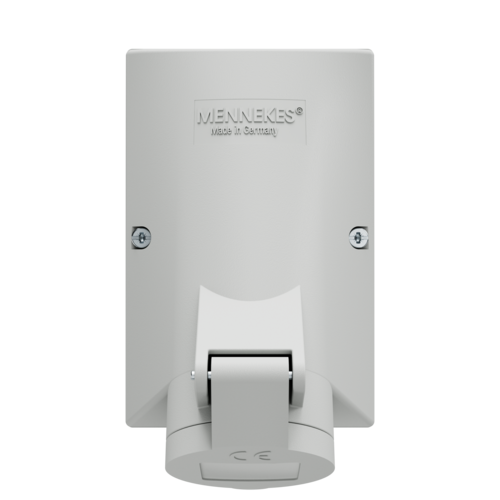

MENNEKES Wall mounted receptacle 578
MENNEKES Wall mounted receptacle 578 images3d

Wall mounted receptacle 578

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at bottom
  • lower part of enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.578
  • EAN4015394004226
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 578

Ampere 16 A
Poles 2 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 260 g
Certifications EAC

Directives

Wall mounted receptacle 578

Appropriate accessories

Wall mounted receptacle 578

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
