Show all 600 V to 690 V / Show all Wall mounted receptacle

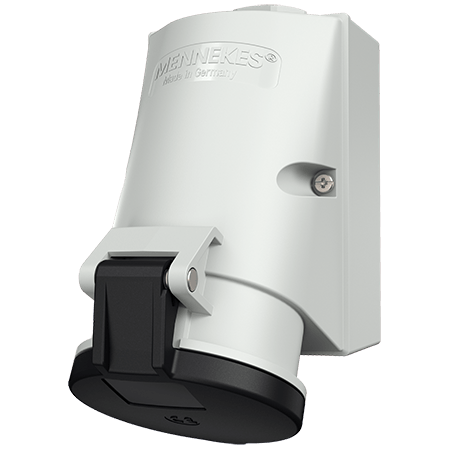

MENNEKES Wall mounted receptacle 2576A

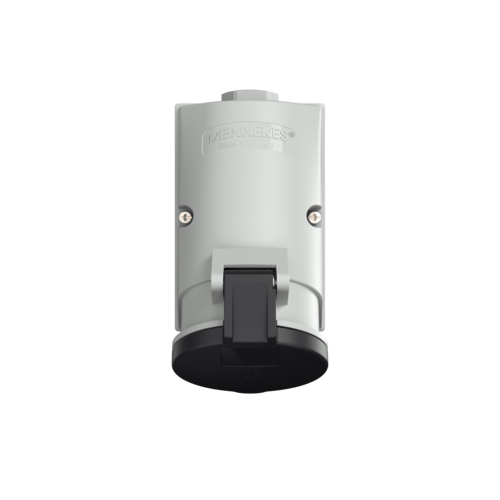

MENNEKES Wall mounted receptacle 2576A images3d

Wall mounted receptacle 2576A

Ampere 16 A 32 A
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2576A
  • EAN4015394117162
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Wall mounted receptacle 2576A

Ampere 32 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 351 g
Certifications CB Zertifikat
VDE
EAC
CQC

Datasheets & Downloads

Wall mounted receptacle 2576A

Product infoWall mounted receptacle 2576A PDF, 147 KB
Mounting instructionsWall mounted receptacle 2576A PDF, 128 KB
Dimensional drawing portraitWall mounted receptacle 2576A PNG, 97 KB
Dimensional drawing landscape formatWall mounted receptacle 2576A PNG, 98 KB

Directives

Wall mounted receptacle 2576A

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 2576A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
