Show all Standard plugs / Show all Plug PowerTOP Xtra with ErgoCONTACT

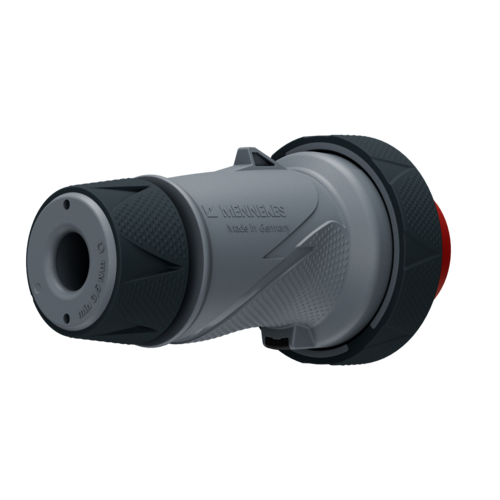

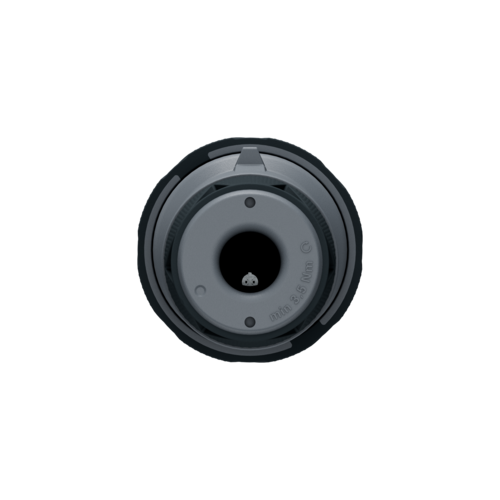

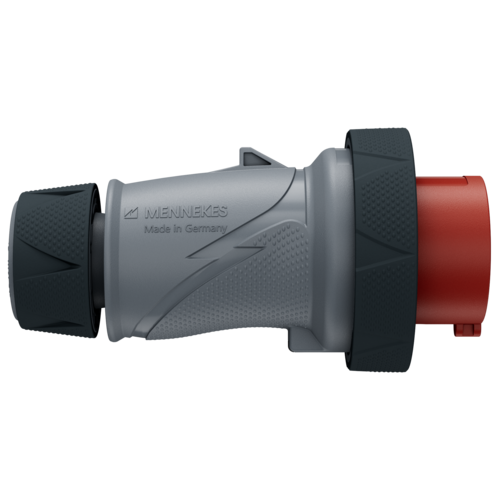

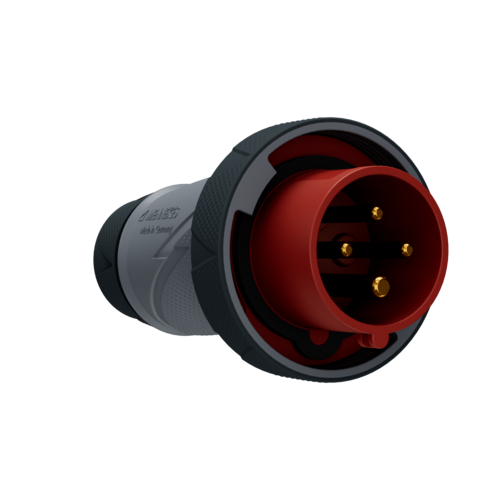

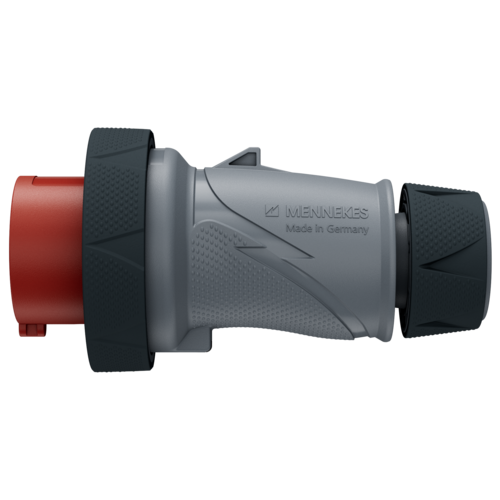

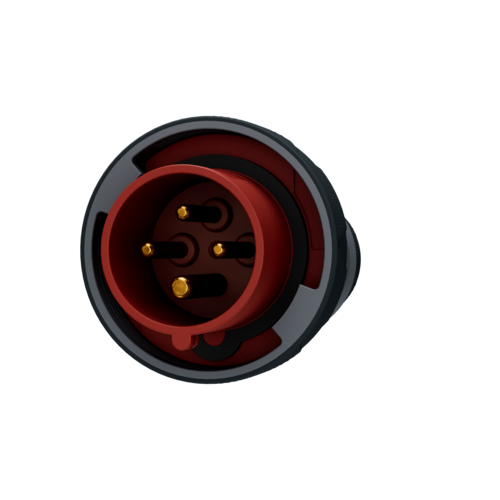

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13622

Plug PowerTOP Xtra with ErgoCONTACT 13622

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The...Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13622
  • EAN4015394302407
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13622

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP67 / IP69
Weight 240 g
Certifications VDE

Datasheets & Downloads

Plug PowerTOP Xtra with ErgoCONTACT 13622

Product infoPlug PowerTOP Xtra with ErgoCONTACT 13622 PDF, 1 MB
CAD data STPPlug PowerTOP Xtra with ErgoCONTACT 13622 ZIP, 3 MB
CAD data 3D DWGPlug PowerTOP Xtra with ErgoCONTACT 13622 ZIP, 3 MB
Mounting instructionsPlug PowerTOP Xtra with ErgoCONTACT 13622 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra with ErgoCONTACT 13622 PNG, 160 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra with ErgoCONTACT 13622 PNG, 346 KB

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13622

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13622

REACh
RoHS

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13622 with IP67 / IP69

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14622

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14622

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Panel mounted receptacle 1479

Panel mounted receptacle

Part no. 1479

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle 9322

Wall mounted receptacle

Part no. 9322

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13622

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A

more
