Show all Standard plugs / Show all Plug PowerTOP Xtra with ErgoCONTACT

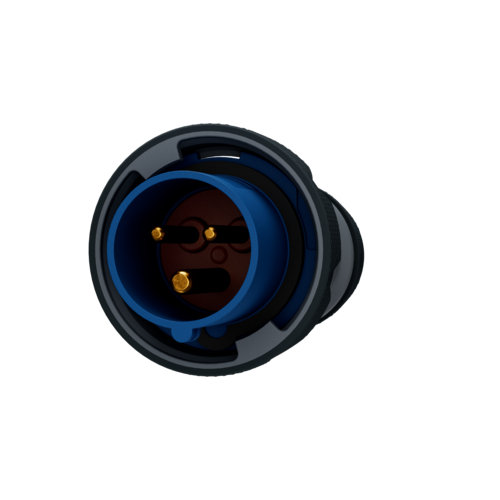

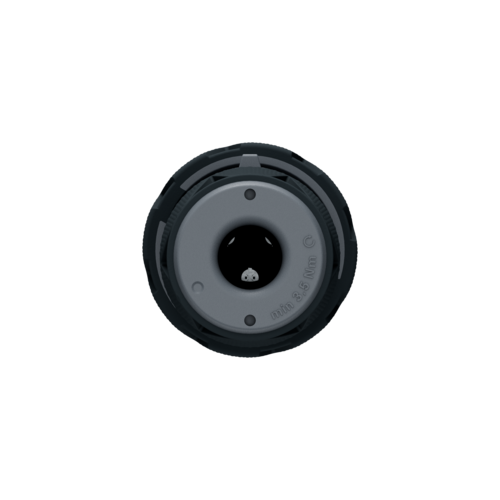

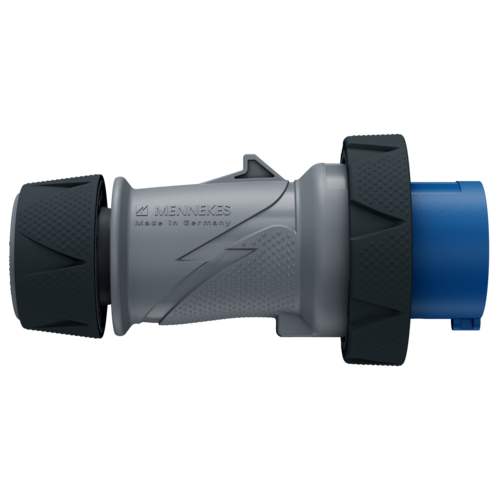

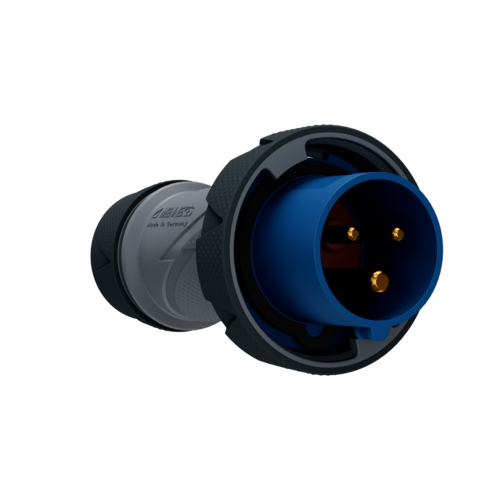

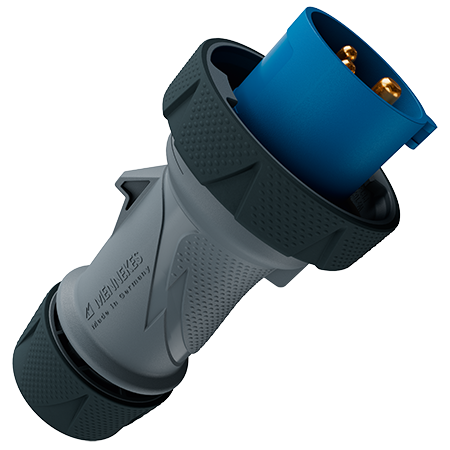

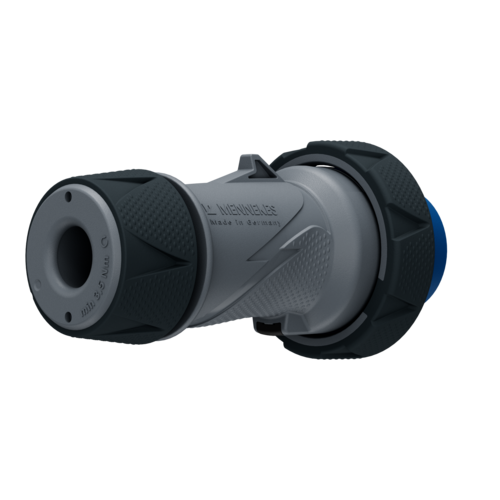

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13620
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13620 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra with ErgoCONTACT 13620

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13620
  • EAN4015394302421
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13620

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP67 / IP69
Weight 200 g
Certifications VDE
CB Zertifikat

Datasheets & Downloads

Plug PowerTOP Xtra with ErgoCONTACT 13620

Product infoPlug PowerTOP Xtra with ErgoCONTACT 13620 PDF, 1 MB
CAD data STPPlug PowerTOP Xtra with ErgoCONTACT 13620 ZIP, 3 MB
CAD data 3D DWGPlug PowerTOP Xtra with ErgoCONTACT 13620 ZIP, 4 MB
Mounting instructionsPlug PowerTOP Xtra with ErgoCONTACT 13620 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra with ErgoCONTACT 13620 PNG, 160 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra with ErgoCONTACT 13620 PNG, 346 KB

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13620

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13620

REACh
RoHS

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13620 with IP67 / IP69

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14620

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14620

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Wall mounted receptacle 9301

Wall mounted receptacle

Part no. 9301

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612306G

Wall mounted receptacle DUOi

Part no. 5612306G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612306H

Wall mounted receptacle DUOi

Part no. 5612306H

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612306N

Wall mounted receptacle DUOi

Part no. 5612306N

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612306T

Wall mounted receptacle DUOi

Part no. 5612306T

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Panel mounted receptacle 1475

Panel mounted receptacle

Part no. 1475

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi R 5812306T

Wall mounted receptacle DUOi R

Part no. 5812306T

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi R 5812306TC

Wall mounted receptacle DUOi R

Part no. 5812306TC

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13620

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A

more
