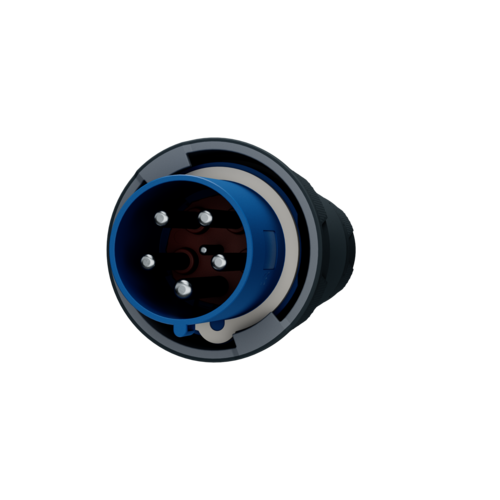

Plug PowerTOP Xtra R 13224
- screw terminals
- rubberised grip area
- frame terminals
- highly heat resistant contact carrier
- nickel plated contacts
- cable gland and sealing
- strain relief and protection against kinking
- enclosure with thread lock
- two safety slides
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Plug PowerTOP Xtra R 13224
| Ampere | 125 A |
|---|---|
| Poles | 5 p |
| Voltage | 230 V |
| Clock position | 9 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 |
| Weight | 1528 g |
| Certifications |
CB Zertifikat VDE EAC |
Appropriate products
Plug PowerTOP Xtra R 13224 with IP67
Appropriate accessories
Plug PowerTOP Xtra R 13224
Frequently asked questions about the product
What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?
Our 5-pin, 16 A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
