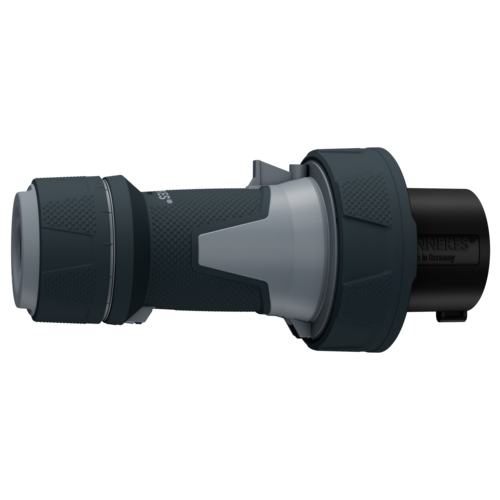

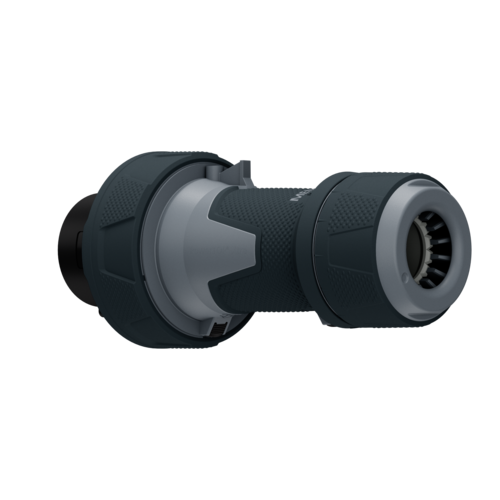

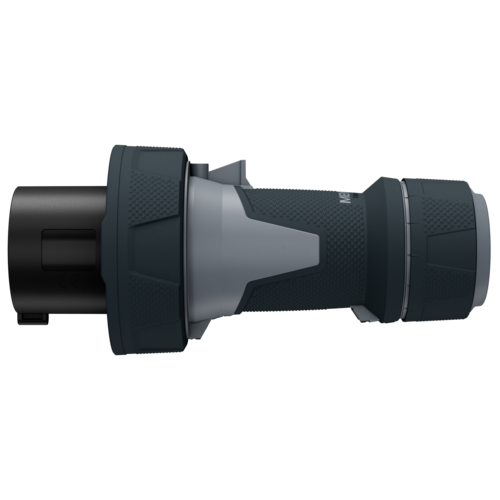

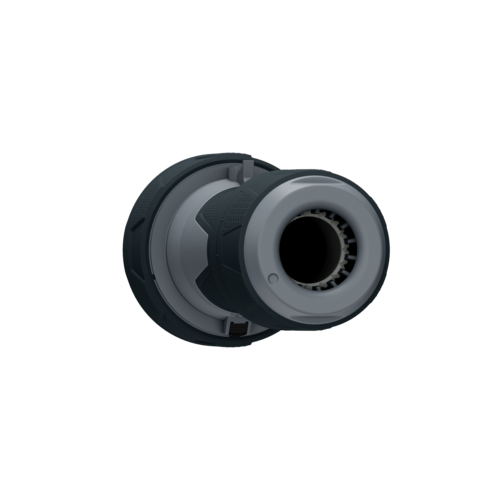

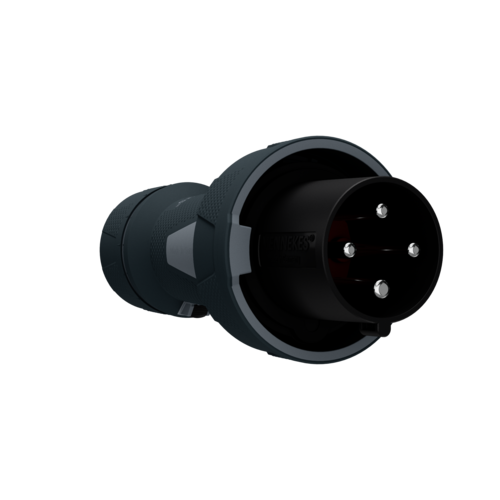

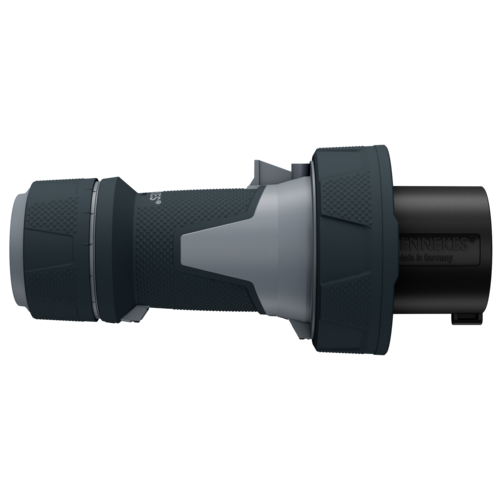

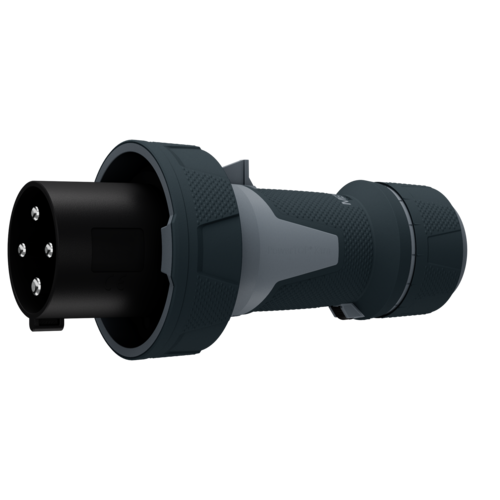

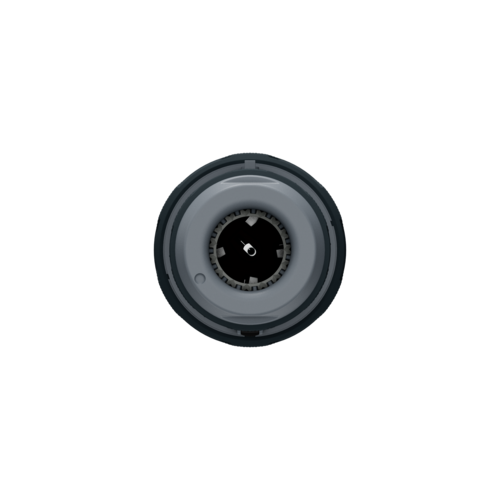

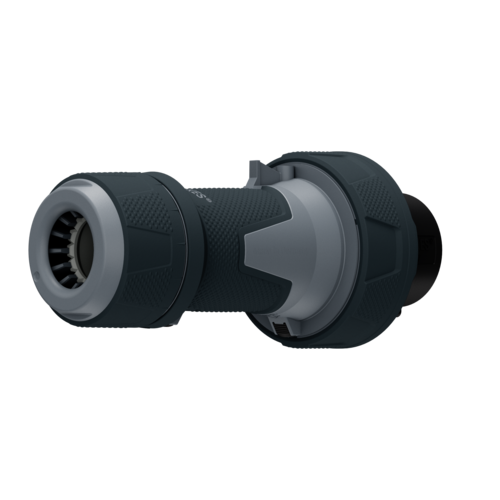

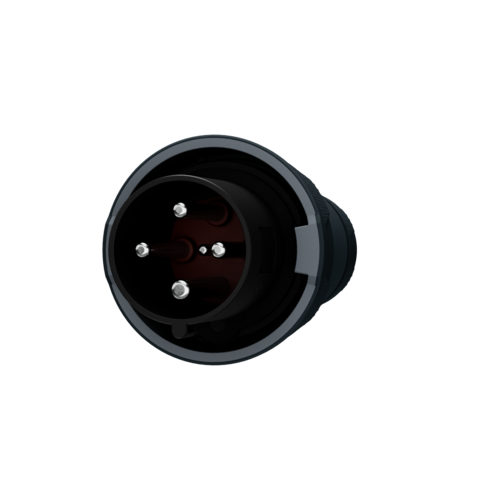

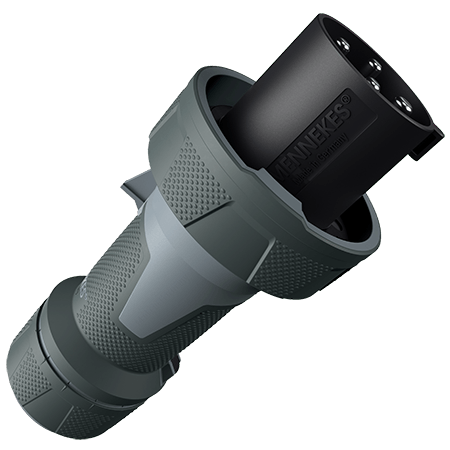

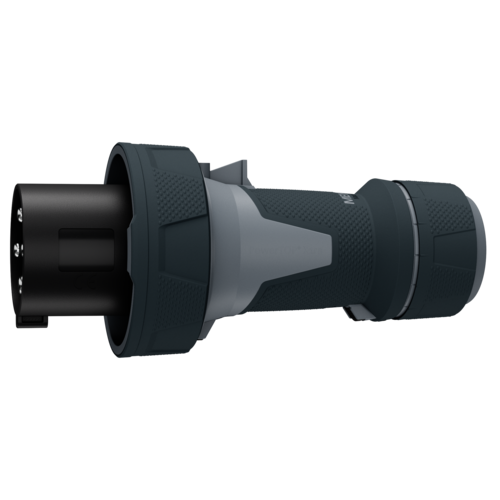

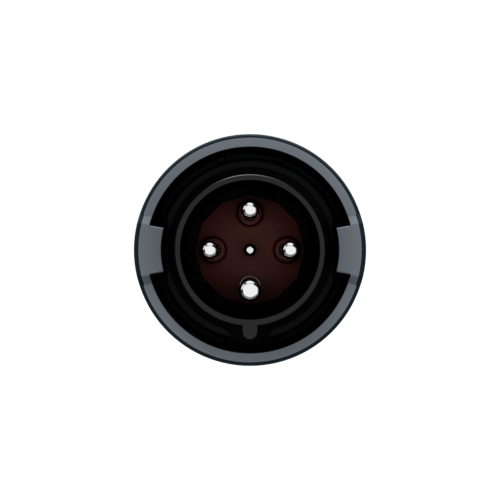

MENNEKES Plug PowerTOP Xtra R 13207

Plug PowerTOP Xtra R 13207

  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13207
  • EAN4015394238775
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra R 13207

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 820 g
Certifications VDE
CQC

Directives

Plug PowerTOP Xtra R 13207

Appropriate products

Plug PowerTOP Xtra R 13207 with IP67

MENNEKES Connector PowerTOP Xtra 14207

Connector PowerTOP Xtra

Part no. 14207

  • Protection type: IP67
  • Ampere: 63 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals

Appropriate accessories

Plug PowerTOP Xtra R 13207

MENNEKES Protective cover 40782

Protective cover

Part no. 40782

for watertight PowerTOP Xtra plugs, 63A

Frequently asked questions about the product

What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?

Our 5-pin, 16A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
