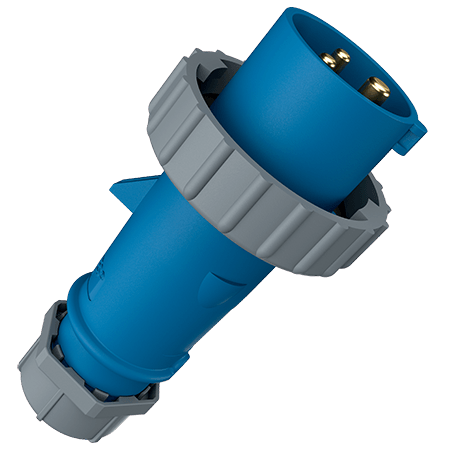

MENNEKES Plug AM-TOP 290

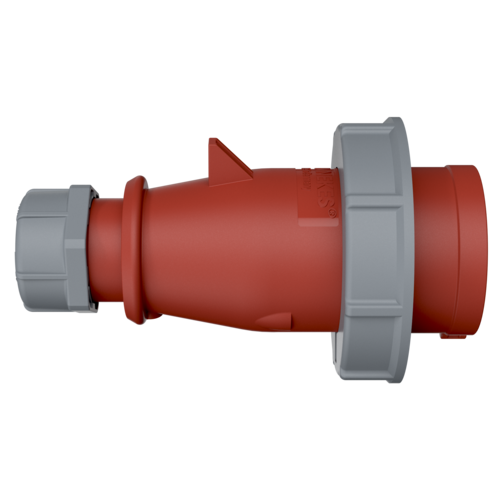

MENNEKES Plug AM-TOP 290 images3d

Plug AM-TOP 290

  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.290
  • EAN4015394002031
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 290

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 292 g
Certifications CQC
VDE
CB Zertifikat

Directives

Plug AM-TOP 290

Appropriate accessories

Plug AM-TOP 290

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets 32 A, 3 p + 4 p

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
