MENNEKES

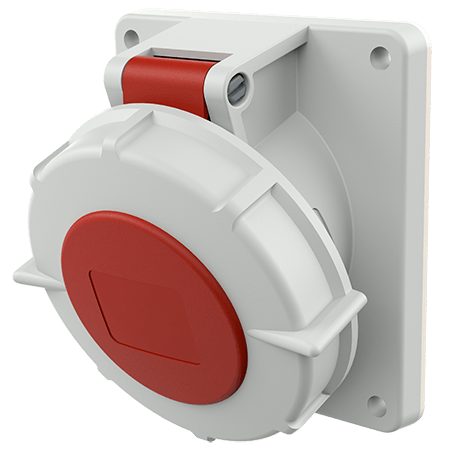

MENNEKES Panel mounted receptacle 1551

Panel mounted receptacle 1551

  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1551
  • EAN4015394012153
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1551

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 334 g
Certifications CQC
VDE
CB Zertifikat

Directives

Panel mounted receptacle 1551

Appropriate products

Panel mounted receptacle 1551 with IP67

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13629

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13629

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT

Appropriate accessories

Panel mounted receptacle 1551

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
