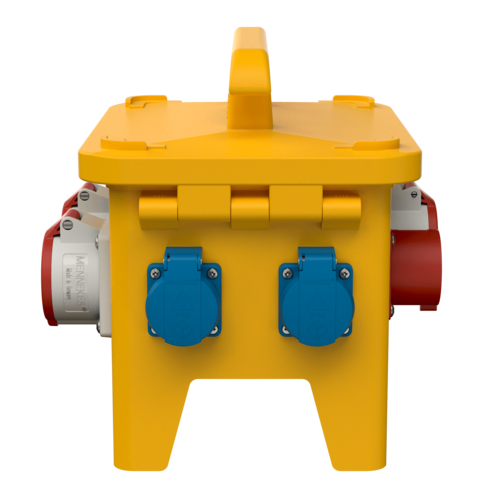

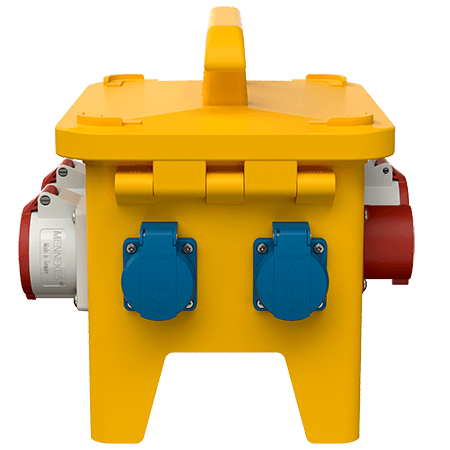

MENNEKES EverGUM receptacle combination 70531
MENNEKES EverGUM receptacle combination 70531 images3d

EverGUM receptacle combination 70531

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70531
  • EAN4015394145509
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM receptacle combination 70531

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 32 A
InA 32 A
RDF 0.9
Connection/feeder cable
  • 1 inlet 32 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 7780 g
Length 306 mm
Height 288 mm
Width 230 mm
Certifications EAC
Storage receptacle combination B

Directives

EverGUM receptacle combination 70531

Frequently asked questions about the product

Are there IP5x EverGUM products?

The standard IP protection classes for the EverGUM product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.

Can I order partially wired receptacle combinations from MENNNEKES?

We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .

Is there a stand available for the mobile EverGUM?

Our EverGUM® combination units are suitable for free-standing floor applications. A stand is therefore not required.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.

Are there protection type IP5x EverGUM products?

The products of our EverGUM family fulfil the requirements for protection type IP44 as standard. We would be happy to check whether we could equip an EverGUM product so that it meets the requirements for another protection type as a special solution.
