Show all Connectors / Show all Connector PowerTOP Xtra with ErgoCONTACT

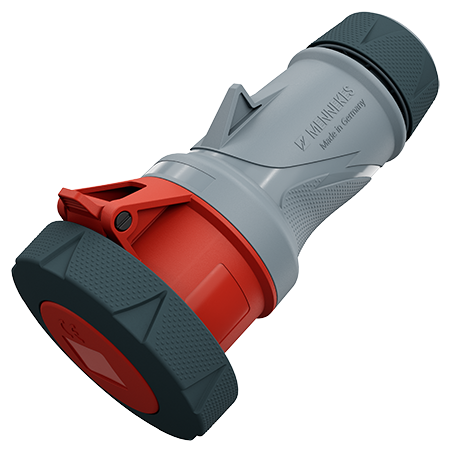

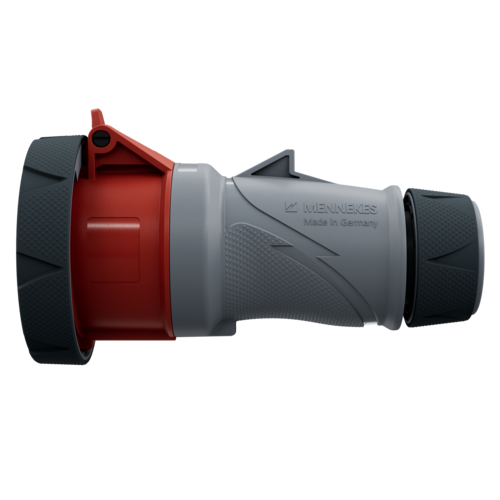

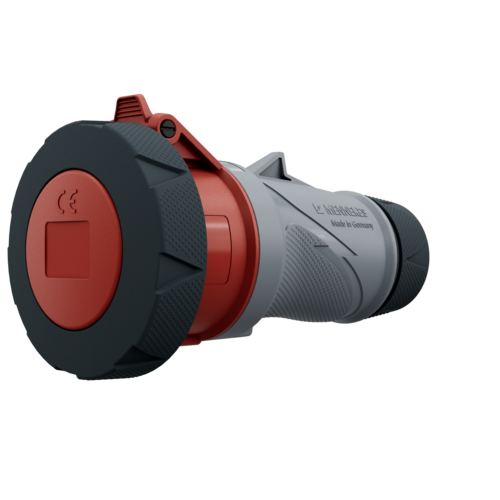

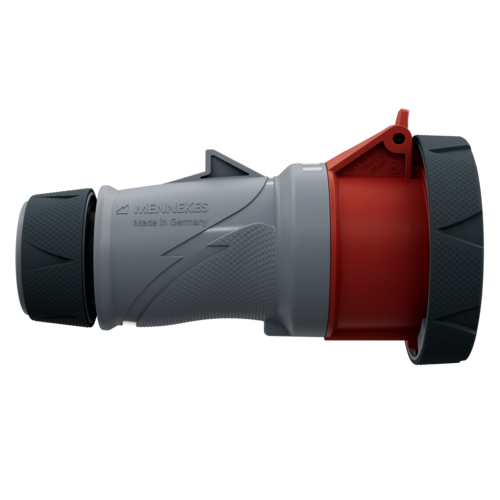

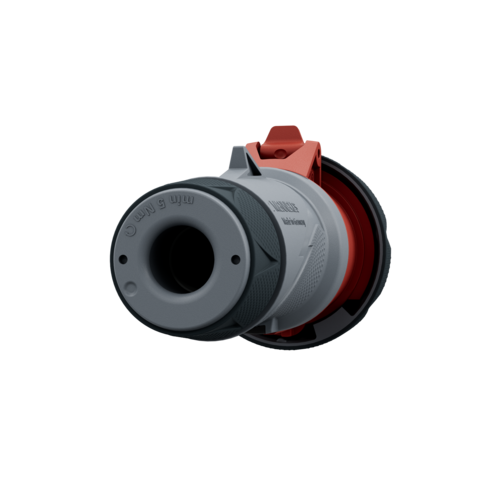

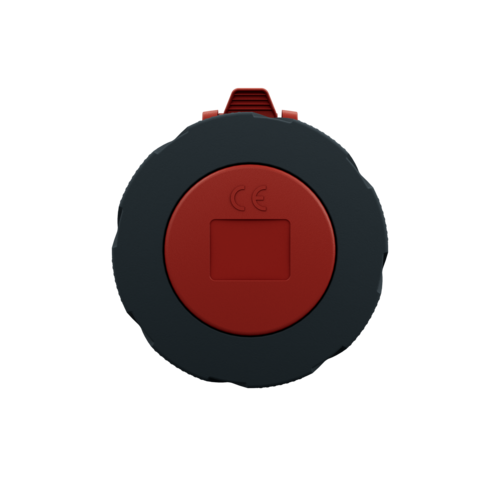

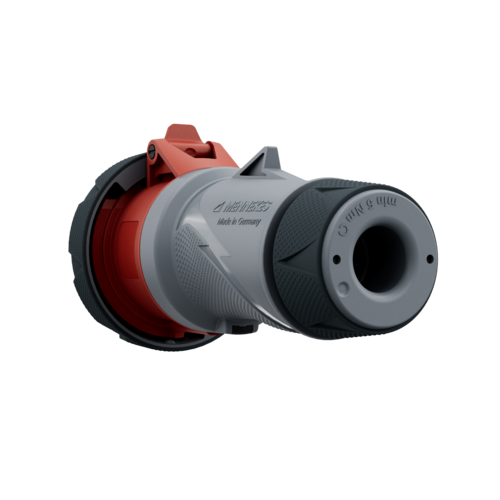

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14629

Connector PowerTOP Xtra with ErgoCONTACT 14629

Robust technology for tough environmental conditions - the PowerTOP Xtra connector impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection....Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14629
  • EAN4015394302476
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14629

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact X-CONTACT
Protection type IP67 / IP69
Weight 510 g
Certifications VDE
CB Zertifikat

Datasheets & Downloads

Connector PowerTOP Xtra with ErgoCONTACT 14629

Product infoConnector PowerTOP Xtra with ErgoCONTACT 14629 PDF, 1 MB
CAD data STPConnector PowerTOP Xtra with ErgoCONTACT 14629 ZIP, 6 MB
CAD data 3D DWGConnector PowerTOP Xtra with ErgoCONTACT 14629 ZIP, 7 MB
Mounting instructionsConnector PowerTOP Xtra with ErgoCONTACT 14629 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP Xtra with ErgoCONTACT 14629 PNG, 160 KB
Dimensional drawing landscape formatConnector PowerTOP Xtra with ErgoCONTACT 14629 PNG, 345 KB

Videos

Connector PowerTOP Xtra with ErgoCONTACT 14629

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra with ErgoCONTACT 14629

REACh
RoHS

Appropriate products

Connector PowerTOP Xtra with ErgoCONTACT 14629 with IP67 / IP69

MENNEKES Panel mounted receptacle 1551

Panel mounted receptacle

Part no. 1551

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13629

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13629

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Wall mounted receptacle 9382

Wall mounted receptacle

Part no. 9382

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Connector PowerTOP Xtra with ErgoCONTACT 14629

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
