Show all Connectors / Show all Connector PowerTOP Xtra with ErgoCONTACT

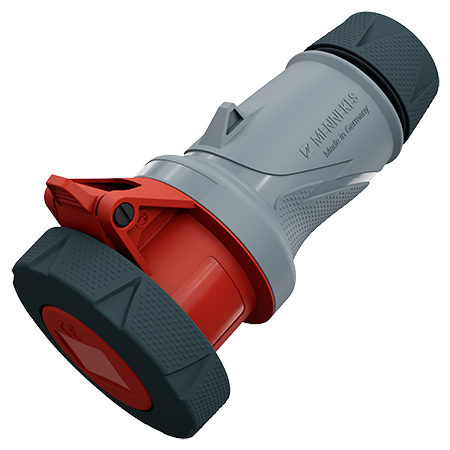

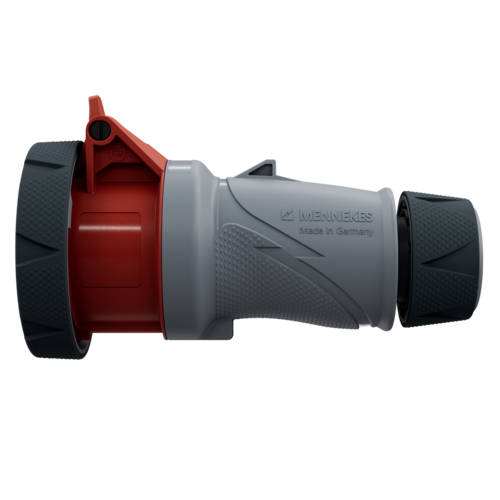

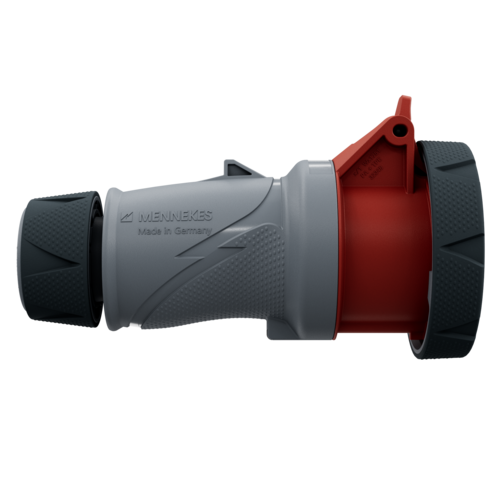

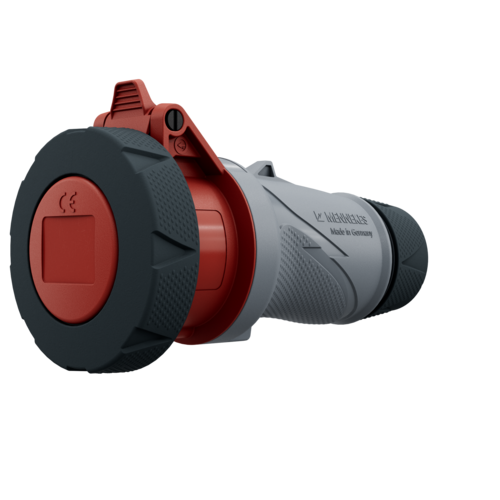

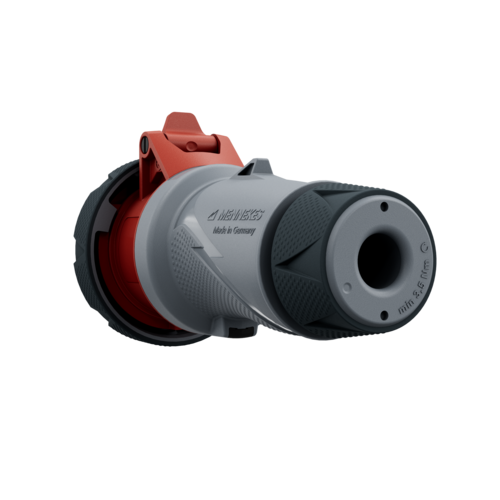

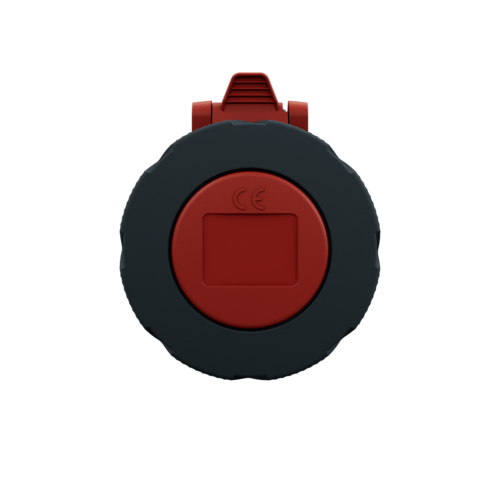

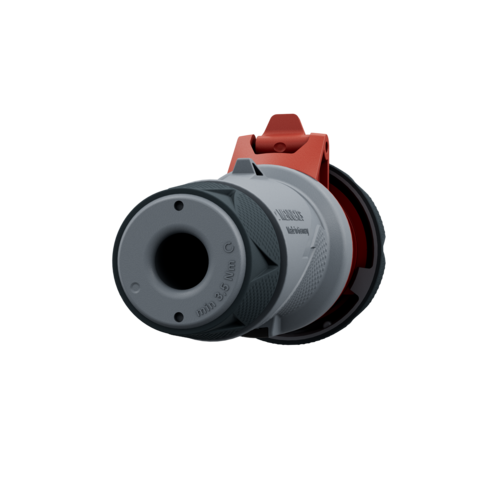

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14622

Connector PowerTOP Xtra with ErgoCONTACT 14622

Robust technology for tough environmental conditions - the PowerTOP Xtra connector impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection....Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14622
  • EAN4015394302605
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14622

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact X-CONTACT
standard
Protection type IP67 / IP69
Weight 290 g
Certifications VDE

Datasheets & Downloads

Connector PowerTOP Xtra with ErgoCONTACT 14622

Product infoConnector PowerTOP Xtra with ErgoCONTACT 14622 PDF, 1 MB
CAD data STPConnector PowerTOP Xtra with ErgoCONTACT 14622 ZIP, 3 MB
CAD data 3D DWGConnector PowerTOP Xtra with ErgoCONTACT 14622 ZIP, 3 MB
Mounting instructionsConnector PowerTOP Xtra with ErgoCONTACT 14622 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP Xtra with ErgoCONTACT 14622 PNG, 160 KB
Dimensional drawing landscape formatConnector PowerTOP Xtra with ErgoCONTACT 14622 PNG, 345 KB

Videos

Connector PowerTOP Xtra with ErgoCONTACT 14622

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra with ErgoCONTACT 14622

REACh
RoHS

Appropriate products

Connector PowerTOP Xtra with ErgoCONTACT 14622 with IP67 / IP69

MENNEKES Wall mounted receptacle 9322

Wall mounted receptacle

Part no. 9322

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13622

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13622

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Panel mounted receptacle 1479

Panel mounted receptacle

Part no. 1479

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Connector PowerTOP Xtra with ErgoCONTACT 14622

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A
