MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14608
MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14608 images3d

Please accept marketing-cookies to watch this video.

Video varieties

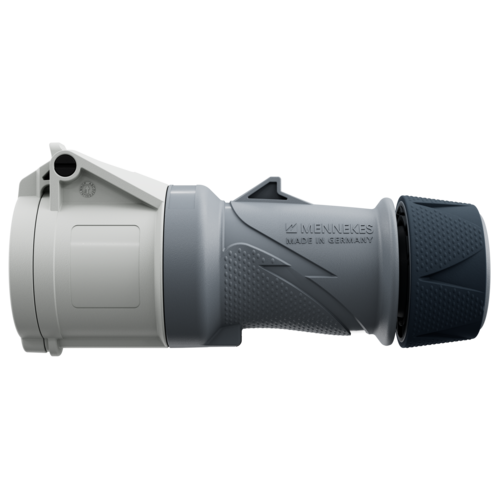

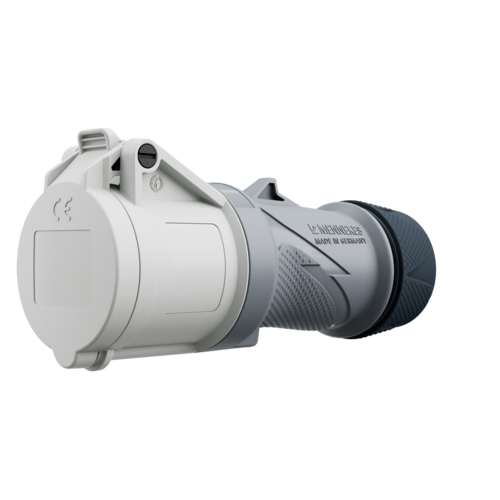

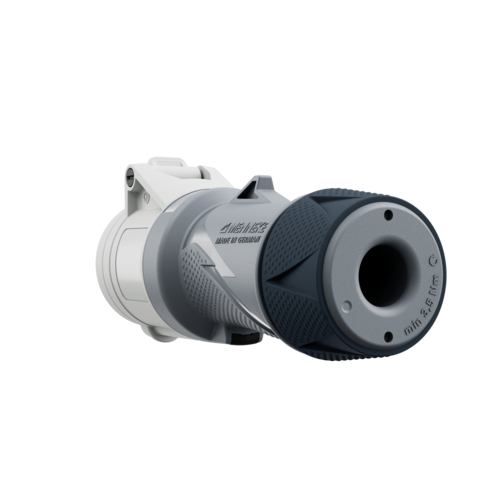

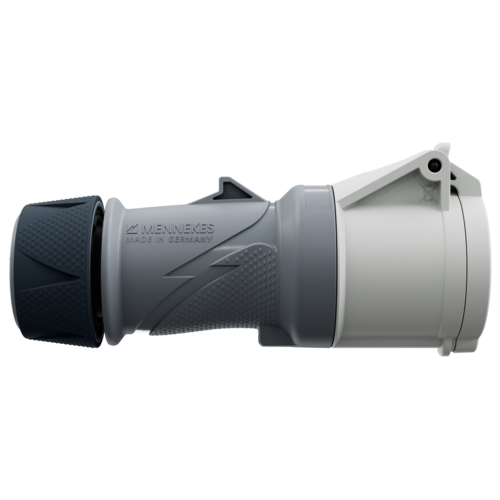

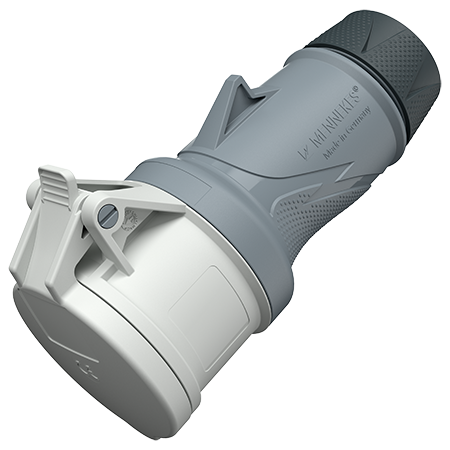

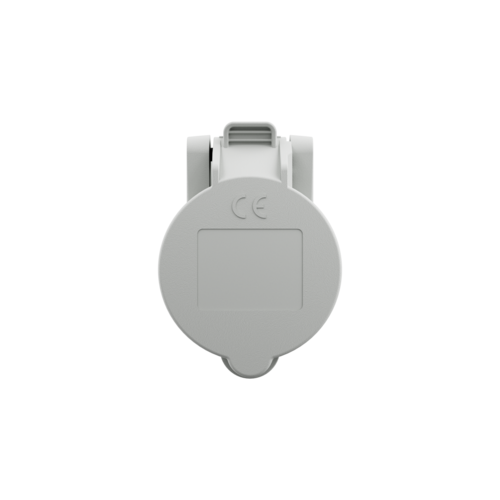

Connector PowerTOP Xtra R with ErgoCONTACT 14608

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14608
  • EAN4015394305859
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Connector PowerTOP Xtra R with ErgoCONTACT 14608

Ampere 32 A
Poles 4 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP54
Weight 385 g
Certifications VDE
CB Zertifikat

Videos

Connector PowerTOP Xtra R with ErgoCONTACT 14608

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra R with ErgoCONTACT 14608

Appropriate products

Connector PowerTOP Xtra R with ErgoCONTACT 14608 with IP54

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13608

Plug PowerTOP Xtra R with ErgoCONTACT

Part no. 13608

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: Isolating transformer
  • Connection technology: Screw terminals, ErgoCONTACT

Appropriate accessories

Connector PowerTOP Xtra R with ErgoCONTACT 14608

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
