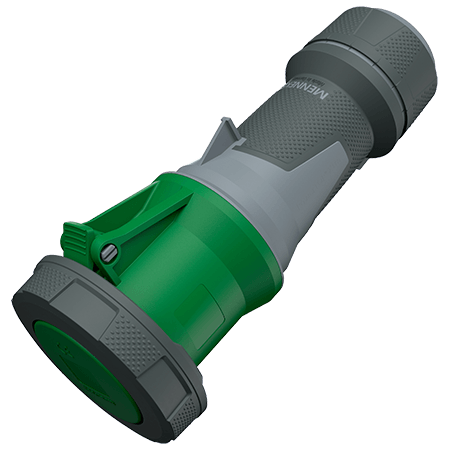

MENNEKES Connector PowerTOP Xtra 14209

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra 14209

  • screw terminals
  • with rubberised grip area
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.14209
  • EAN4015394238393
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14209

Ampere 63 A
Poles 4 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP67
Weight 884 g
Certifications EAC
CQC
