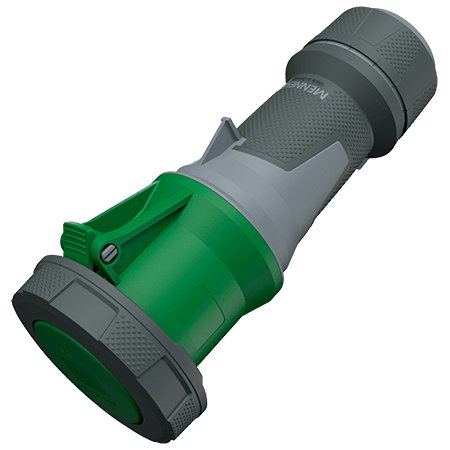

MENNEKES Connector PowerTOP Xtra 14208

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra 14208

  • screw terminals
  • with rubberised grip area
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • products with pilot contact on request
  • Part no.14208
  • EAN4015394238386
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14208

Ampere 63 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP67
Weight 952 g
Certifications CQC
VDE
CB Zertifikat

Videos

Connector PowerTOP Xtra 14208

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra 14208

Appropriate products

Connector PowerTOP Xtra 14208 with IP67

MENNEKES Plug PowerTOP Xtra 13208

Plug PowerTOP Xtra

Part no. 13208

  • Protection type: IP67
  • Ampere: 63 A
  • Poles: 4 p
  • Voltage: 50-500 V
  • Connection technology: Screw terminals
