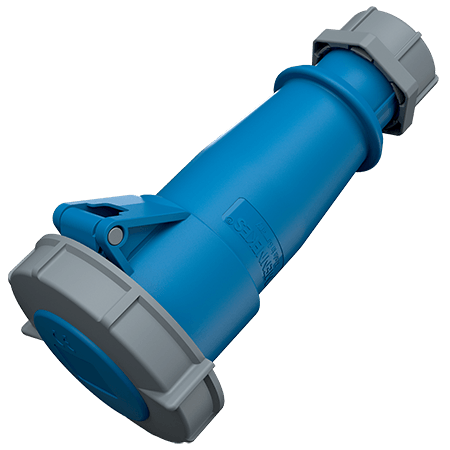

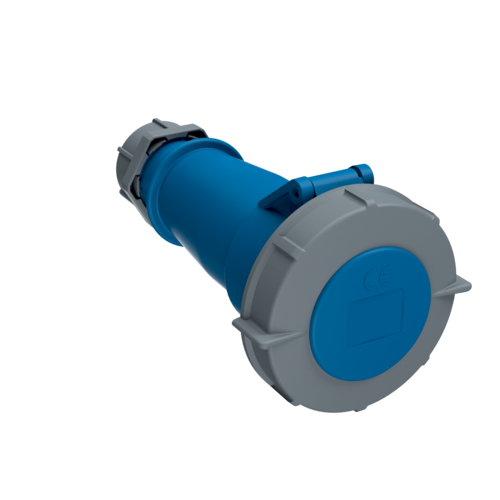

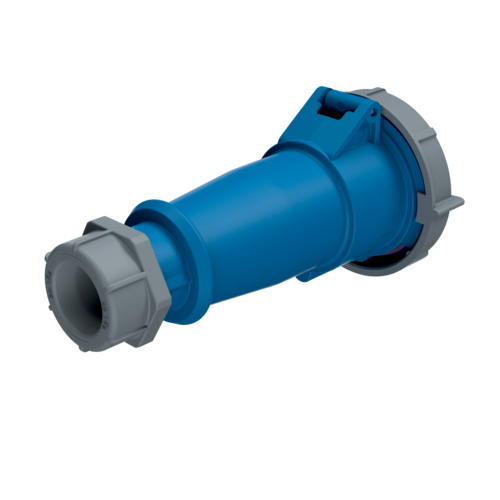

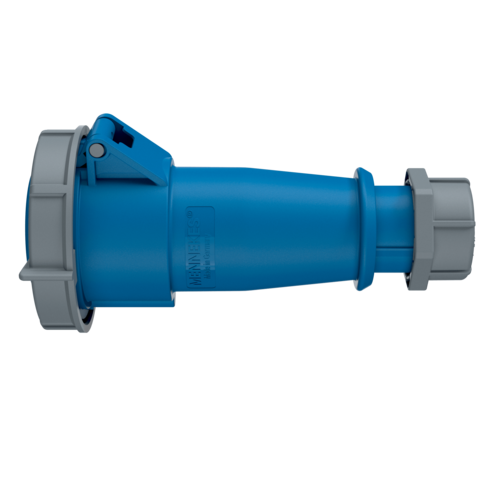

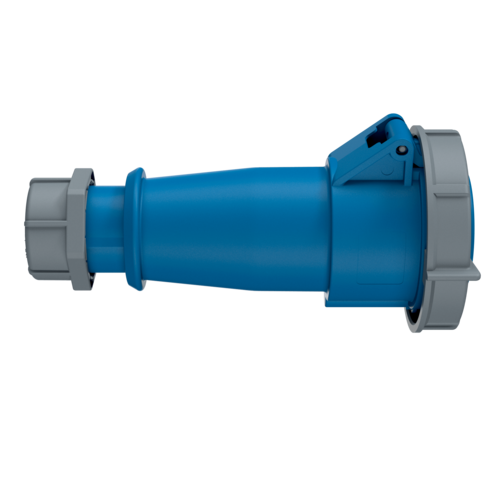

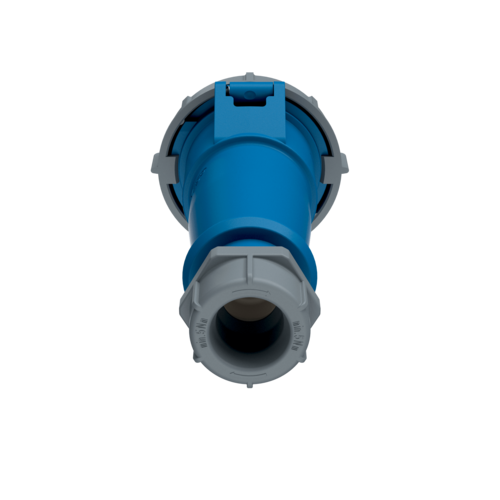

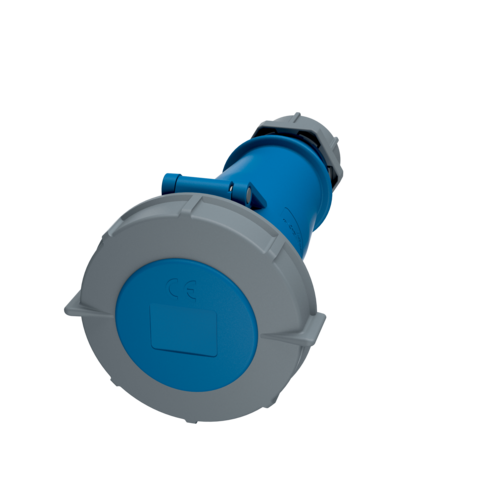

MENNEKES Connector AM-TOP 552
MENNEKES Connector AM-TOP 552 images3d

Connector AM-TOP 552

  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.552
  • EAN4015394004073
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 552

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 357 g
Certifications VDE

Directives

Connector AM-TOP 552

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here

To the questions and answers
