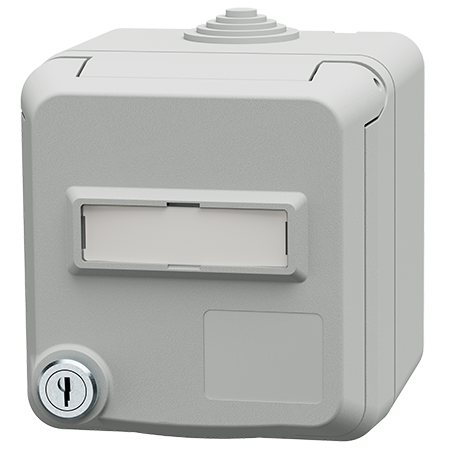

MENNEKES Cepex wall mounted receptacle with lock and labeling field, light grey 4863

Cepex wall mounted receptacle with lock and labeling field, light grey 4863

Available from 01/07/2026
Ampere 16 A
  • screw terminals
  • with labelling field
  • with safety lock, two keys
  • cannot be dismantled when locked
  • on request with identical locks
  • with identical locks: Part no + index G
  • Part no.4863
  • EAN4015394314950
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle with lock and labeling field, light grey 4863

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 333 g

Directives

Cepex wall mounted receptacle with lock and labeling field, light grey 4863
