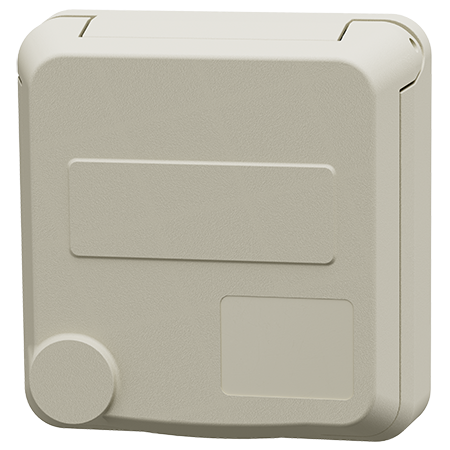

MENNEKES Cepex panel mounted receptacle, pearl white 4813

Cepex panel mounted receptacle, pearl white 4813

Available from 01/07/2026
Ampere 16 A
  • screw terminals
  • also suitable for installation in cable ducts and columns
  • Part no.4813
  • EAN4015394315094
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle, pearl white 4813

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 204 g

Datasheets & Downloads

Cepex panel mounted receptacle, pearl white 4813

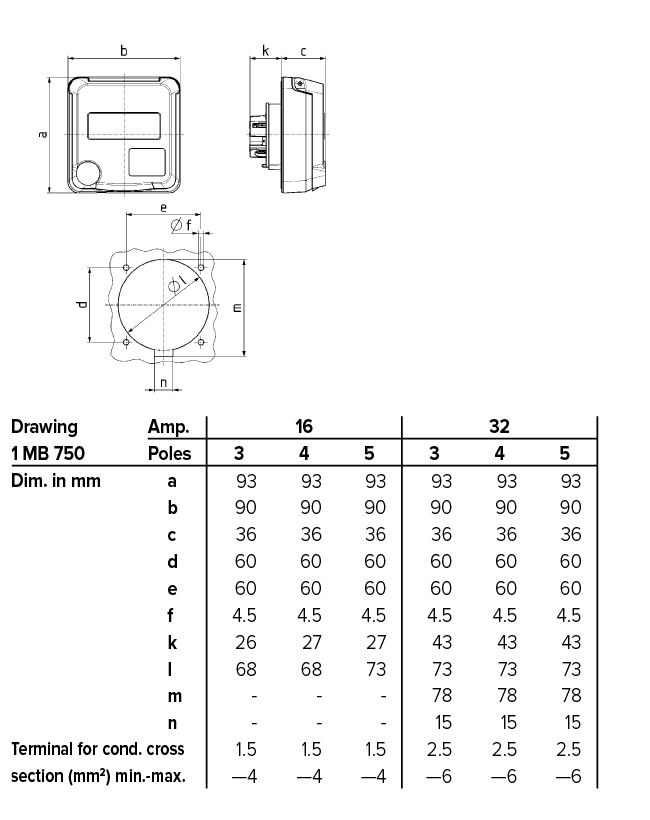

Dimensional drawing portraitCepex panel mounted receptacle, pearl white 4813 PNG, 160 KB
Dimensional drawing landscape formatCepex panel mounted receptacle, pearl white 4813 PNG, 233 KB

Directives

Cepex panel mounted receptacle, pearl white 4813

REACh
RoHS
