Show all SCHUKO® / Show all Connector SCHUKO®

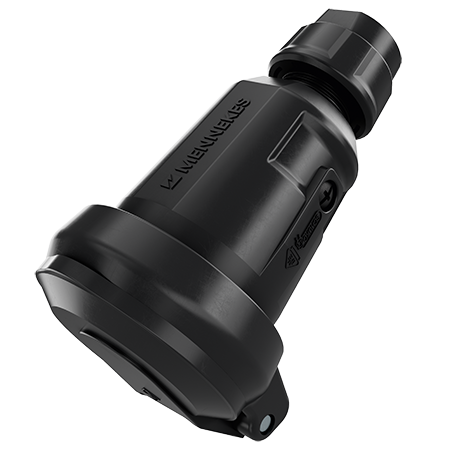

MENNEKES Connector SCHUKO® 158071

Connector SCHUKO® 158071

Ampere 16 A
  • Screw terminals
  • With cable gland
  • With self-closing hinged cover
  • Large connection space for cables up to 3 x 2.5 mm², type H07RN-F
  • Part no.158071
  • EAN4015394311119
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Connector SCHUKO® 158071

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Enclosure material Plastic
Weight 114 g

Datasheets & Downloads

Connector SCHUKO® 158071

Product infoConnector SCHUKO® 158071 PDF, 280 KB
CAD data STPConnector SCHUKO® 158071 ZIP, 1 MB
CAD data 3D DWGConnector SCHUKO® 158071 ZIP, 1 MB
Dimensional drawing portraitConnector SCHUKO® 158071 PNG, 20 KB
Dimensional drawing landscape formatConnector SCHUKO® 158071 PNG, 119 KB

Directives

Connector SCHUKO® 158071

REACh
RoHS
