MENNEKES Connector PowerTOP Xtra 14261
MENNEKES Connector PowerTOP Xtra 14261 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra 14261

  • screw terminals
  • X-CONTACT
  • with rubberised grip area
  • frame terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.14261
  • EAN4015394257431
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14261

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP67
Weight 1662 g
Certifications EAC

Videos

Connector PowerTOP Xtra 14261

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

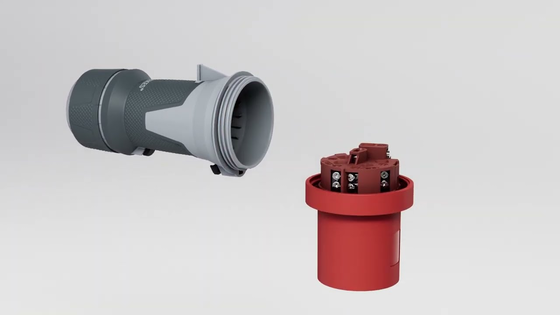

Video mounting instructions

Directives

Connector PowerTOP Xtra 14261

Appropriate products

Connector PowerTOP Xtra 14261 with IP67

MENNEKES Plug PowerTOP Xtra 13261

Plug PowerTOP Xtra

Part no. 13261

  • Protection type: IP67
  • Ampere: 125 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
