Show all SCHUKO® / Show all Panel mounted receptacle SCHUKO®
Show all Panel mounted receptacles / Show all Panel mounted receptacle SCHUKO®

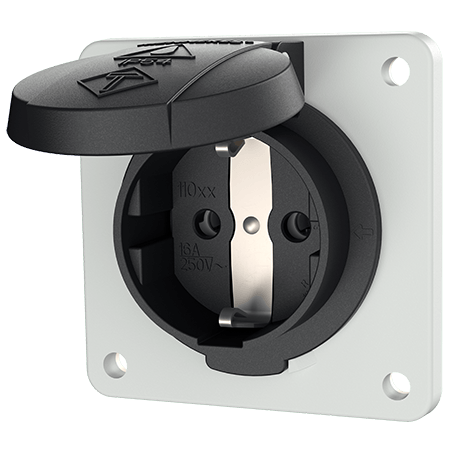

MENNEKES Panel mounted receptacle SCHUKO® 11032F

Panel mounted receptacle SCHUKO® 11032F

Ampere 16 A
  • for stationary use
  • with hinged lid
  • also suitable for cable ducts and flush mounted installation boxes
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • Part no.11032F
  • EAN4015394260783
  • Std. Pack. 20 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle SCHUKO® 11032F

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Enclosure material Plastic
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 60 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 11032F

Product infoPanel mounted receptacle SCHUKO® 11032F PDF, 132 KB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 11032F PNG, 26 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 11032F PNG, 44 KB

Directives

Panel mounted receptacle SCHUKO® 11032F

REACh
RoHS
