MENNEKES

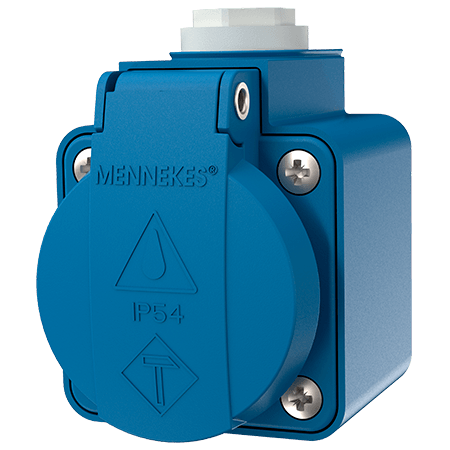

MENNEKES Grounding-type wall mounted receptacle 10121

Grounding-type wall mounted receptacle 10121

Ampere 16 A
  • French-belgian standard
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • cable entry M 20 x 1.5 at top and blind entry (for cut out) M 20 x 1.5 at bottom
  • can be arranged in a row using slot and slide
  • Part no.10121
  • EAN4015394312116
  • Std. Pack. 50 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type wall mounted receptacle 10121

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 85 g

Directives

Grounding-type wall mounted receptacle 10121
