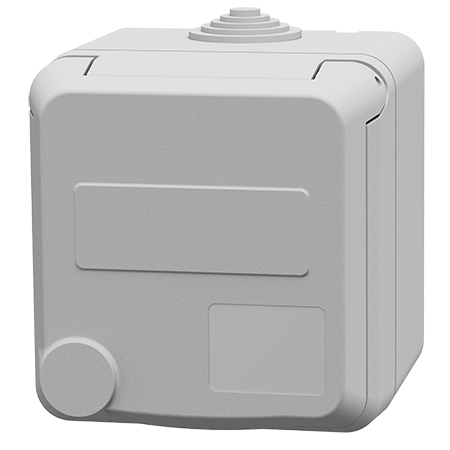

MENNEKES Cepex wall mounted receptacle, light grey 4803

Cepex wall mounted receptacle, light grey 4803

Ampere 16 A 32 A
  • screw terminals
  • Part no.4803
  • EAN4015394315155
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle, light grey 4803

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 308 g

Datasheets & Downloads

Cepex wall mounted receptacle, light grey 4803

Product infoCepex wall mounted receptacle, light grey 4803 PDF, 444 KB
CAD data STPCepex wall mounted receptacle, light grey 4803 ZIP, 880 KB
CAD data 3D DWGCepex wall mounted receptacle, light grey 4803 ZIP, 938 KB
Dimensional drawing portraitCepex wall mounted receptacle, light grey 4803 PNG, 178 KB
Dimensional drawing landscape formatCepex wall mounted receptacle, light grey 4803 PNG, 249 KB
BrochuresCepex wall mounted receptacle, light grey 4803 PDF, 1 MB

Directives

Cepex wall mounted receptacle, light grey 4803

REACh
RoHS

Appropriate products

Cepex wall mounted receptacle, light grey 4803 with IP54

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13506

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13506

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13558

Plug PowerTOP Xtra R with ErgoCONTACT

Part no. 13558

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more

Appropriate accessories

Cepex wall mounted receptacle, light grey 4803

MENNEKES Spacer frame 4239

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

more
MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

more
MENNEKES Cable gland 990610

Cable gland

Part no. 990610

M 25 - clamping/sealing range 9-17 mm, IP54, deep black RAL 9005, individual packed

more
MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

more
