Connection technologies for our plugs and sockets
Our plugs and sockets are equipped with different connection technologies for easy, safe and time-saving installation. Here you will find an overview of our user-friendly connection technologies ErgoCONTACT, SafeCONTACT, TwinCONTACT and screw contact.

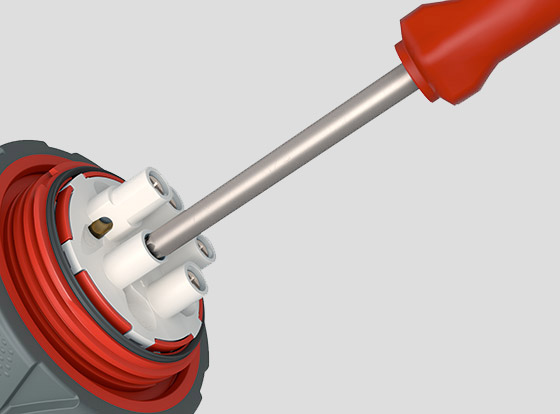

With ErgoCONTACT, you insert the screwdriver from the top instead of from the side. This makes it easier to achieve the required torque and the pressure is applied directly from the grip. All of the screws point in the same direction. This saves time, because it‘s no longer necessary to rotate the front part in your hand in order to tighten the contact screws of the individual poles one after the other.

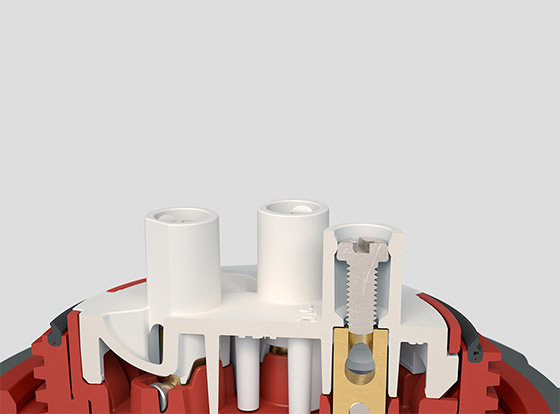

Curved conductor guidance channels easily and securely move the conductor ends into the contacts.
The screw trajectory is additionally supported by a guide collar which prevents slide-off and minimises the danger of injury.
Each contact has only one screw: a captive combination head screw that is permanently integrated in the guide collar in the factory and can be turned using either a Phillips or a flathead screwdriver. Since only one screw has to be set for each contact, installation is easy and time-saving.

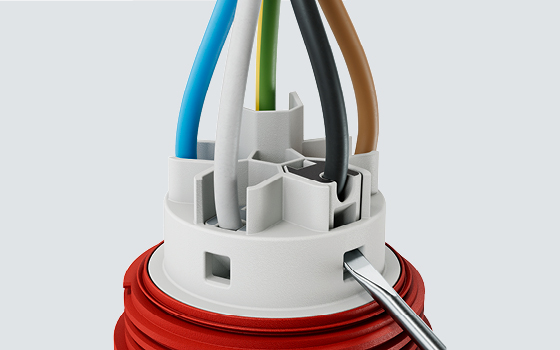

Plug in conductors without stripping, lever down the terminals with a screwdriver – that‘s it.

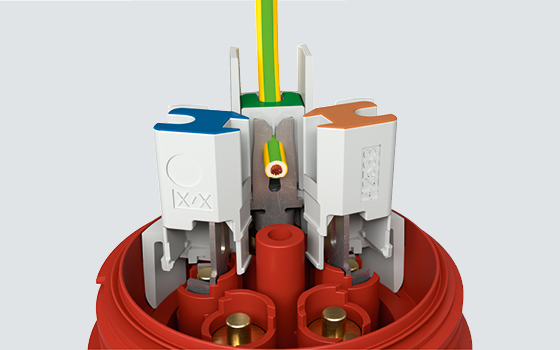

In one work process the insulation is separated and a secure contact connection established.

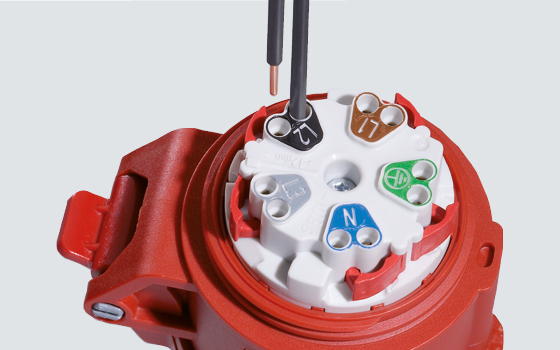

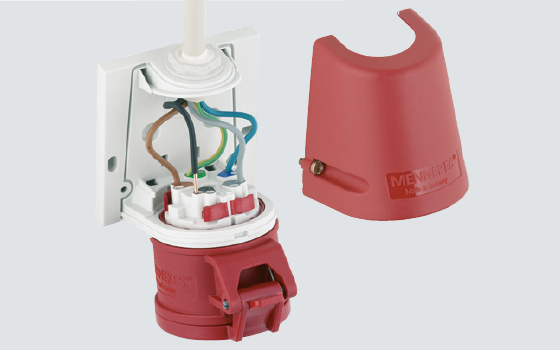

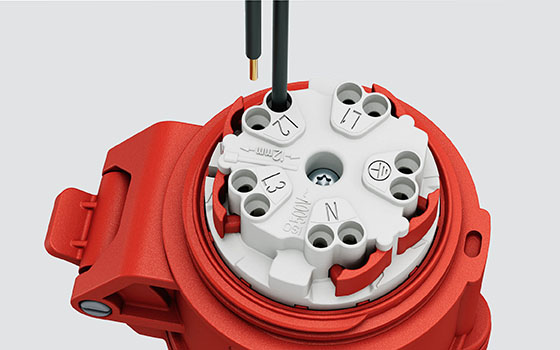

The stripped conductors are simply inserted – they can be used with or without wire end sleeves.
Two contact screws ensure a secure hold of the conductors. These are tightened diagonally and permanently keep the conductors in position.
