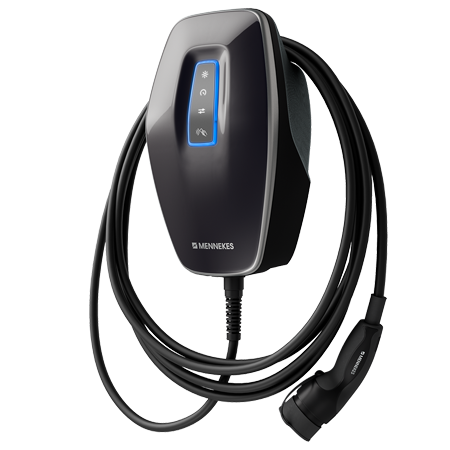

AMTRON® 4You 310 11 C2
AMTRON® 4You 310 - the charging station for easy charging at home with access protection and PV charging with external meter. Thanks to RFID access protection, the charger offers security against unauthorized use by third parties. It enables manufacturer-independent PV charging by recording the surplus from the PV system via an external meter. This makes AMTRON® 4You 310 future-proof and compatible with any PV system. The wallbox can be customized with interchangeable Front Covers. Direct operation on the device and the LED status display make charging uncomplicated. In the 11 kW version, the charging station supports both 1-phase and 3-phase solar charging including dynamic phase switching and maximizes the use of surplus solar energy. With the permanently attached type 2 charging cable, with a length of 7.5 meters, and the integrated cable management, the charging station offers additional convenience.
- Simple Charging
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Details
General data
| Application |
Simple solar charging |
|---|---|
| Plug device |
Permanently connected charging cable (7.5 m) |
| Authorisation |
Autostart (without access protection) |
| Load management |
Solar charging via an upstream, external energy meter 1- / 3-phase solar charging for charging powers of 1.4 - 11 kW Connection to an external EMS via Modbus RTU |
| Communication with vehicle |
IEC 61851-1 Mode 3 |
| Product colour |
midnight black |
Electrical data
| Connection |
1 -phase 3 -phase |
|---|---|
| Maximum charging power per charging point |
11 kW |
Appropriate accessories
AMTRON® 4You 310 11 C2 1313201205BK
