MENNEKES
MENNEKES AMTRON® 4You 410 11 C2 1314001205BK

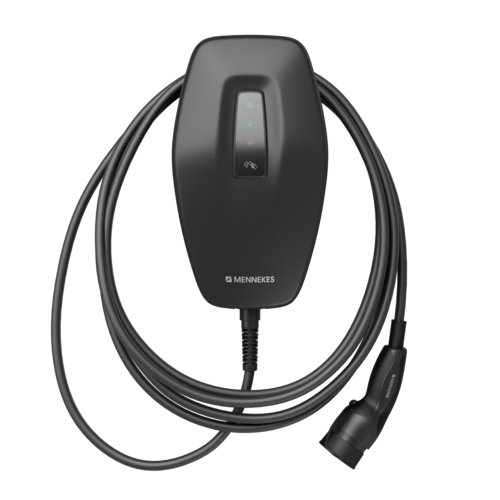

MENNEKES AMTRON® 4You 410 11 C2 1314001205BK images3d

AMTRON® 4You 410 11 C2

AMTRON® 4You 410 11 C2 is the economical and future‑proof 11 kW wallbox for everyone who wants to focus on the essentials when charging at home – without compromising on smart features.

The hardware is already designed for the EN ISO 15118‑20 communication standard, which, according to AFIR, will become mandatory for private charging points from January 1, 2027. With a free software update, the wallbox will fully comply with this standard.

With PV surplus charging, app control, broad compatibility with energy management systems, and legally required controllability according to § 14a EnWG, AMTRON® 4You 410 11 C2 offers exactly the features that make everyday life noticeably easier. RFID access control, a simple and intuitive icon‑based status display, Wi-Fi connectivity, and a 6-meter permanently attached cable ensure comfort, safety, and transparency. It is the ideal choice for those seeking a functional, reliable, and smart wallbox that seamlessly integrates into their home.

AMTRON® 4You 410 11 C2 is produced resource‑efficiently and with CO₂ compensation. With premium quality, integrated DC fault current detection, and optional overvoltage protection, the wallbox offers a charging experience that not only impresses technically, but also feels good: sustainable, safe, and ready for the future of e‑mobility.

• Prepared for 15118‑20 and AFIR‑compliant from 2027 onward

• Integration into energy management, e.g., for PV surplus charging

• Controllability according to § 14a EnWG

• RFID access control

• Simple, intuitive icon‑based status display

• App-based operation: configuration, charging modes, history

• 6 m permanently attached cable

• Wi-Fi for smart connectivity and updates

• 11 kW charging power

  • Convenient solar charging with external energy meter or to a home energy management system
  • Access with RFID charging card
  • 4Drivers App
  • Load management
  • WLAN
  • Backend
  • Part no.1314001205BK
  • EAN4015394312277
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Application

Convenient solar charging

Plug device

Permanently connected charging cable (6 m)

Authorisation

Autostart (without access protection)

RFID

Backend

IOS / Android App

AMTRON® 4Drivers App

ISO 15118

Prepared for ISO 15118

Load management

Static load management

Dynamic load management

Solar charging via an upstream, external energy meter

1- / 3-phase solar charging for charging powers of 1.4 - 11 kW

Connection to an external EMS via Modbus TCP and EEBus

Networking

WIFI

Protocol backend communication

OCPP 1.6j

Communication with vehicle

IEC 61851-1 Mode 3

Prepared for ISO 15118

Product colour

black (RAL 9005)

Electrical data
Connection

1 -phase

3 -phase

Maximum charging power per charging point

11 kW

Directives

AMTRON® 4You 410 11 C2 1314001205BK

Appropriate accessories

AMTRON® 4You 410 11 C2 1314001205BK

MENNEKES Meter (Modbus TCP) for load management 18662

Meter (Modbus TCP) for load management

Part no. 18662

MENNEKES SPD AMTRON®4Y/4B 100/300/400/600 18661

SPD AMTRON®4Y/4B 100/300/400/600

Part no. 18661

MENNEKES AMTRON 4Y/4B RFID cards 18660

AMTRON 4Y/4B RFID cards

Part no. 18660

MENNEKES Pedestal for 2x AMTRON 4Y/4B 18664

Pedestal for 2x AMTRON 4Y/4B

Part no. 18664

MENNEKES Pedestal for AMTRON 4Y/4B 18663

Pedestal for AMTRON 4Y/4B

Part no. 18663
