AMTRON® Professional Twincharge 7000

AMTRON® Professional Twincharge 7000

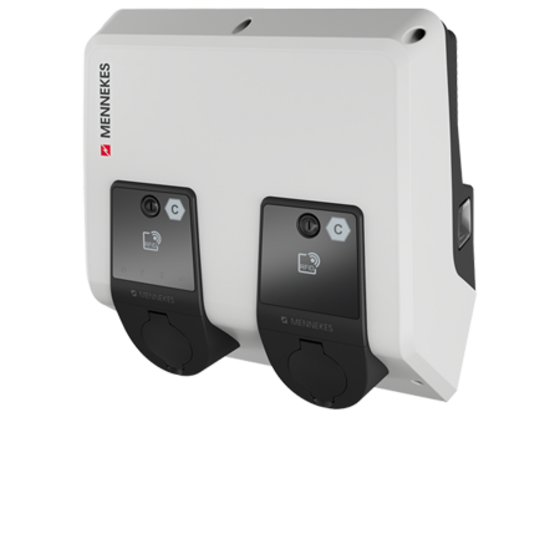

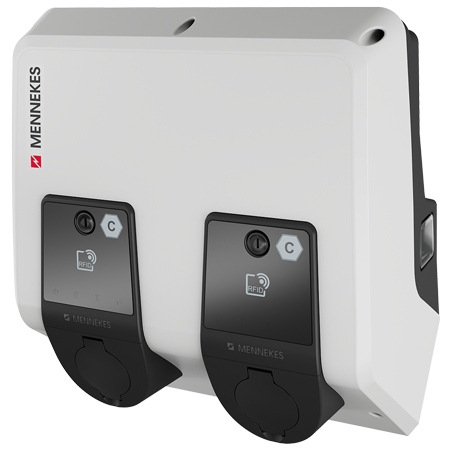

Dual charging station with display for semi-public and public environments

The AMTRON® Professional Twincharge 7000 dual charging station can charge 2 vehicles simultaneously with up to 22 kW per charging point. Each charging point is equipped with its own colour display for intuitive user guidance. ISO 15118 and intelligent load management are included as standard. Combined with the choice of a Type 2 socket outlet or permanently attached Type 2 charging cable, variants are available to meet different requirements in semi-public and public environments.

Advantages at a glance

  • Advantages at a glance
  • Available with either a Type 2 socket or permanently attached Type 2 charging cable
  • Robust design with IP54 protection rating and IK10 impact resistance
  • Key safety features integrated: personnel and cable protection, Type A residual current device and DC residual current monitoring
  • MID-certified energy meter
  • Multifunction button (for fault rectification, etc.)
  • Local networking via LAN (RJ45)
  • Simple daisy-chaining of network cables (integrated switch)
  • Optional integrated mobile communications modem for backend connectivity (7300 variant)
  • Compatible with OCPP 1.6
  • Connection of external energy meters for overload protection
  • Dynamic and phase-accurate load management for up to 100 charge points
  • Flexible billing options through integration with professional billing software or a billing service provider
  • RFID authorisation

Can be combined with the AMEDIO® Professional 7000 charging column and the AMTRON® Professional 7000 charging station

Compatible

100 % compatible with Professional charging systems.

Service-friendly

Service and maintenance work can be carried out with ease.

Interoperable

Fully ISO 15118 compliant throughout and fully AFIR compliant.

Cyber-secure

Dynamic QR codes are displayed securely on the colour display, preventing tampering and fraud.

Accessible user guidance with a 3.5-inch colour display

Users receive clear and easy-to-understand instructions for operating the charging station. In addition, depending on the selected options and backend configuration, they can view the following information at a glance before, during and after charging: operator logo, charge point identification, pricing information, a dynamic QR code for authorisation, charging status, current charging power, energy charged and charging time.

Innovative component design

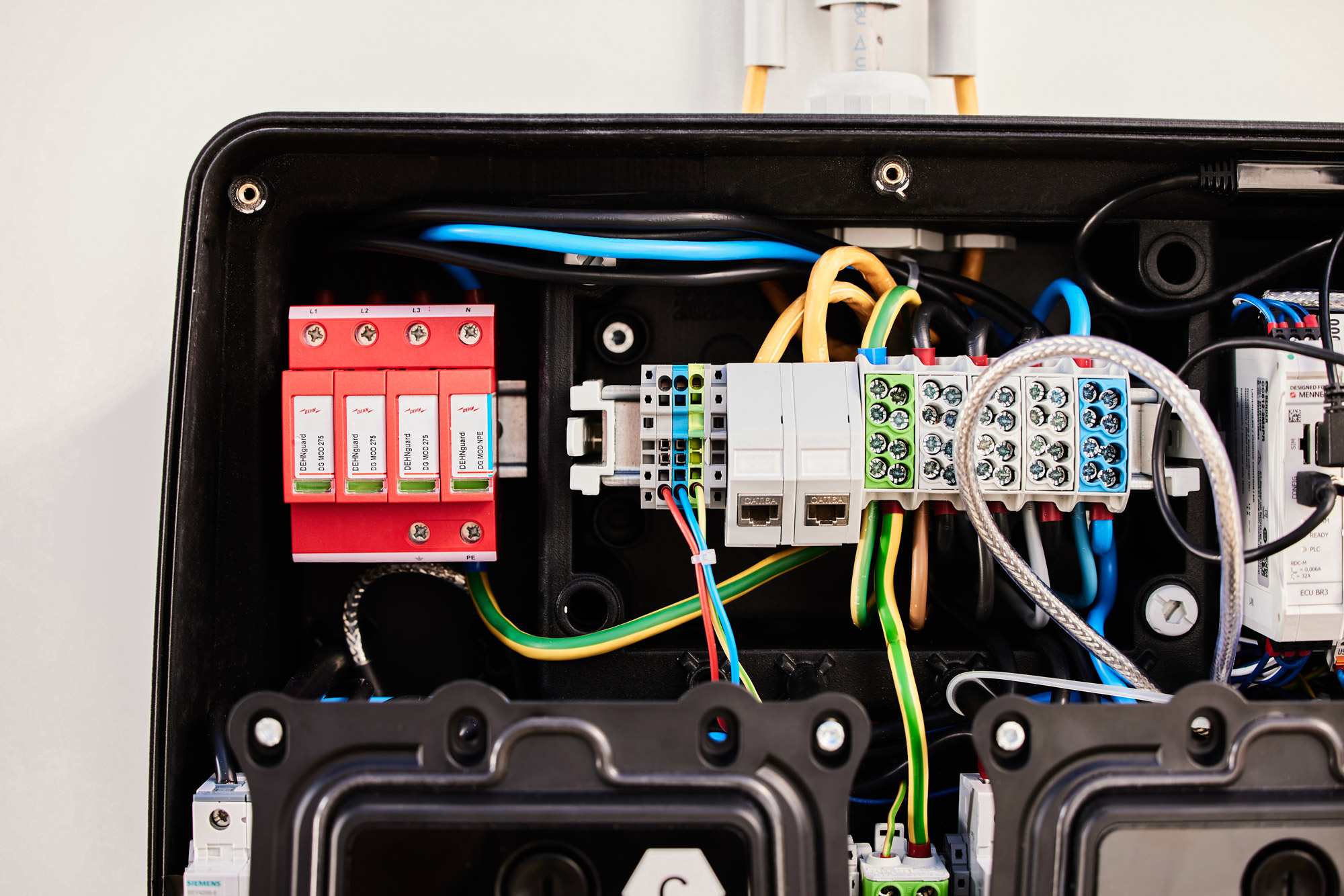

The component selection and layout of the AMTRON® Professional 7000 have been designed to make the units as service-friendly as possible. Contactors, relays and other components can be replaced quickly and easily whenever required.

Professional 7000 charging stations compared

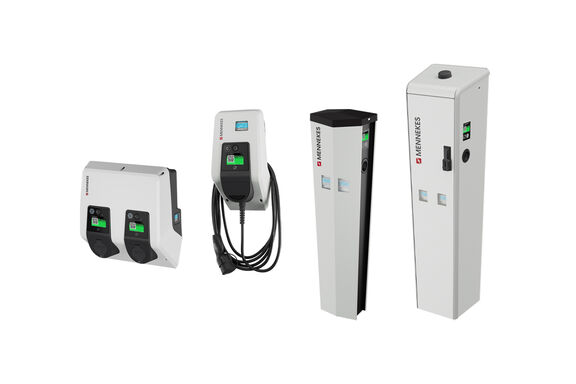

The Professional series comprises a single wallbox, a dual charging station, and an AC charging column: AMTRON® Professional 7000, AMTRON® Professional Twincharge 7000, and AMEDIO® Professional 7000. Compare the models here to find the right solution for your specific application.

 AMTRON® Professional 7000AMTRON® Professional Twincharge 7000AMEDIO® Professional 7000
DesignWallboxWallboxCharing column
Charging power1 x 22 kW2 x 22 kW2 x 22 kW
ISO 15118 and AFIR compliantYes, with software updateYes, with software updateYes, with software update
LANYesYesYes
Mobile communications modemDepending on versionDepending on versionDepending on version
Primary applicationPublic and semi-public AC charging, e.g. in company car parksPublic and semi-public AC charging, e.g. in company car parksPublic and semi-public AC charging, e.g. on company car parks
Target groupCompaniesCompaniesMunicipal utilities, energy suppliers and companies

Installation options

The AMTRON® Professional Twincharge 7000 offers particularly space-saving installation options when combined with our accessories, such as a stainless-steel pedestal. For example, 2 dual charging stations can be installed on a single pedestal, providing up to 4 charging points within a very small footprint.

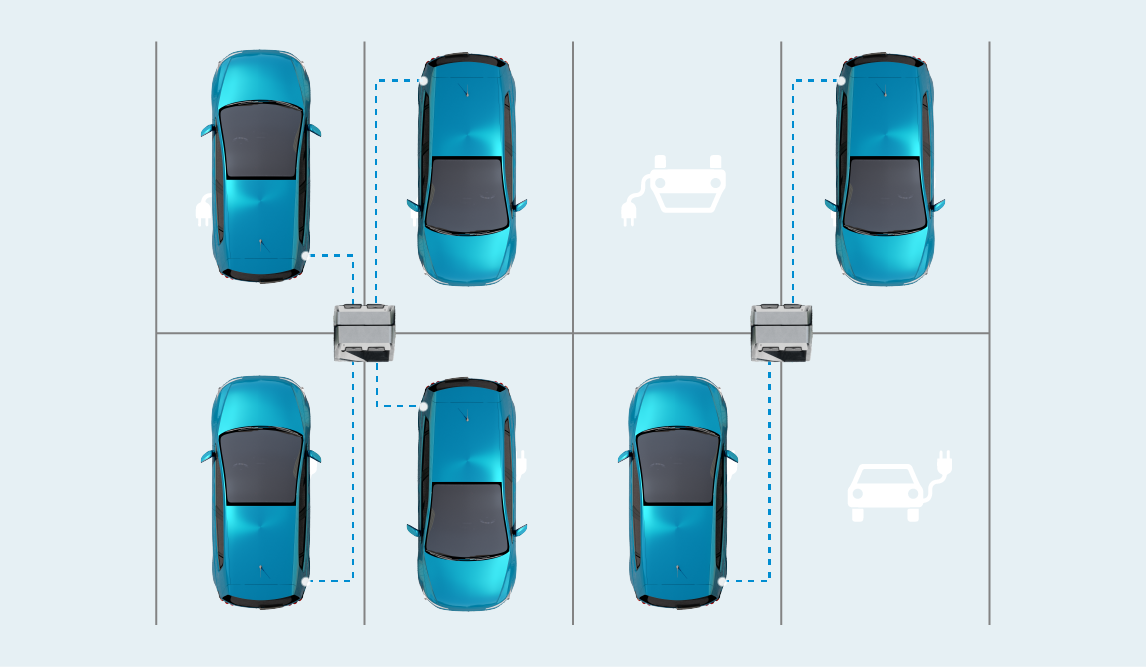

Example: Dual charging station mounted back-to-back on a pedestal

8 charging points provided by 2 AMTRON® Professional Twincharge 7000 units mounted back-to-back on pedestals.

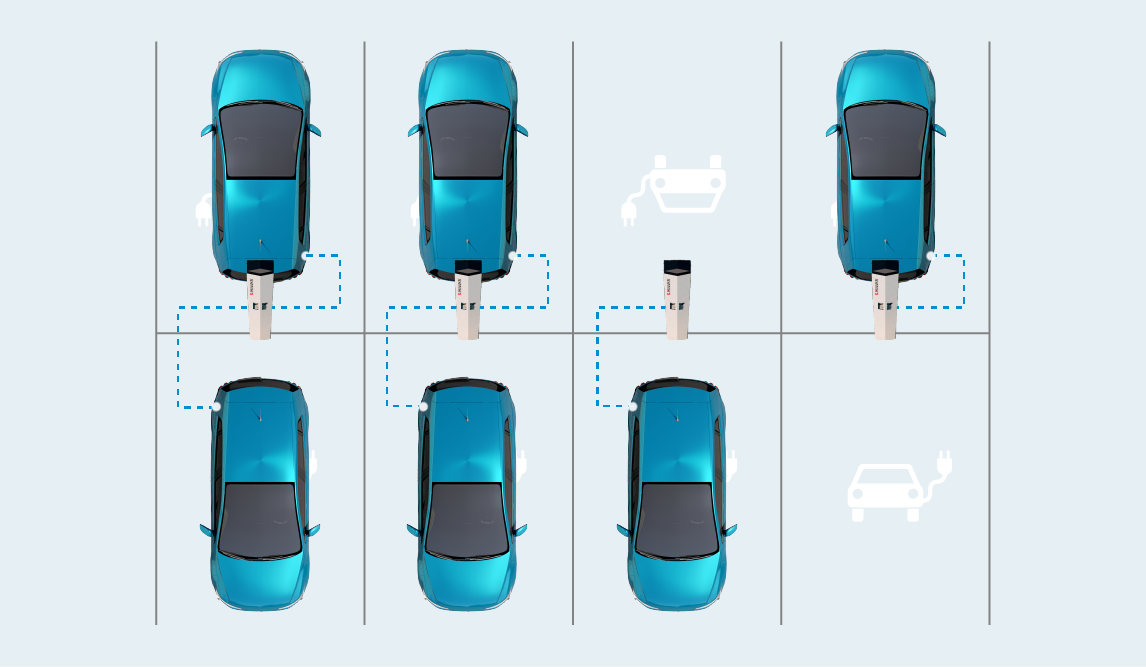

Example: Charging columns installed in a conventional configuration

8 charging points distributed across 4 AMEDIO® Professional charging columns.

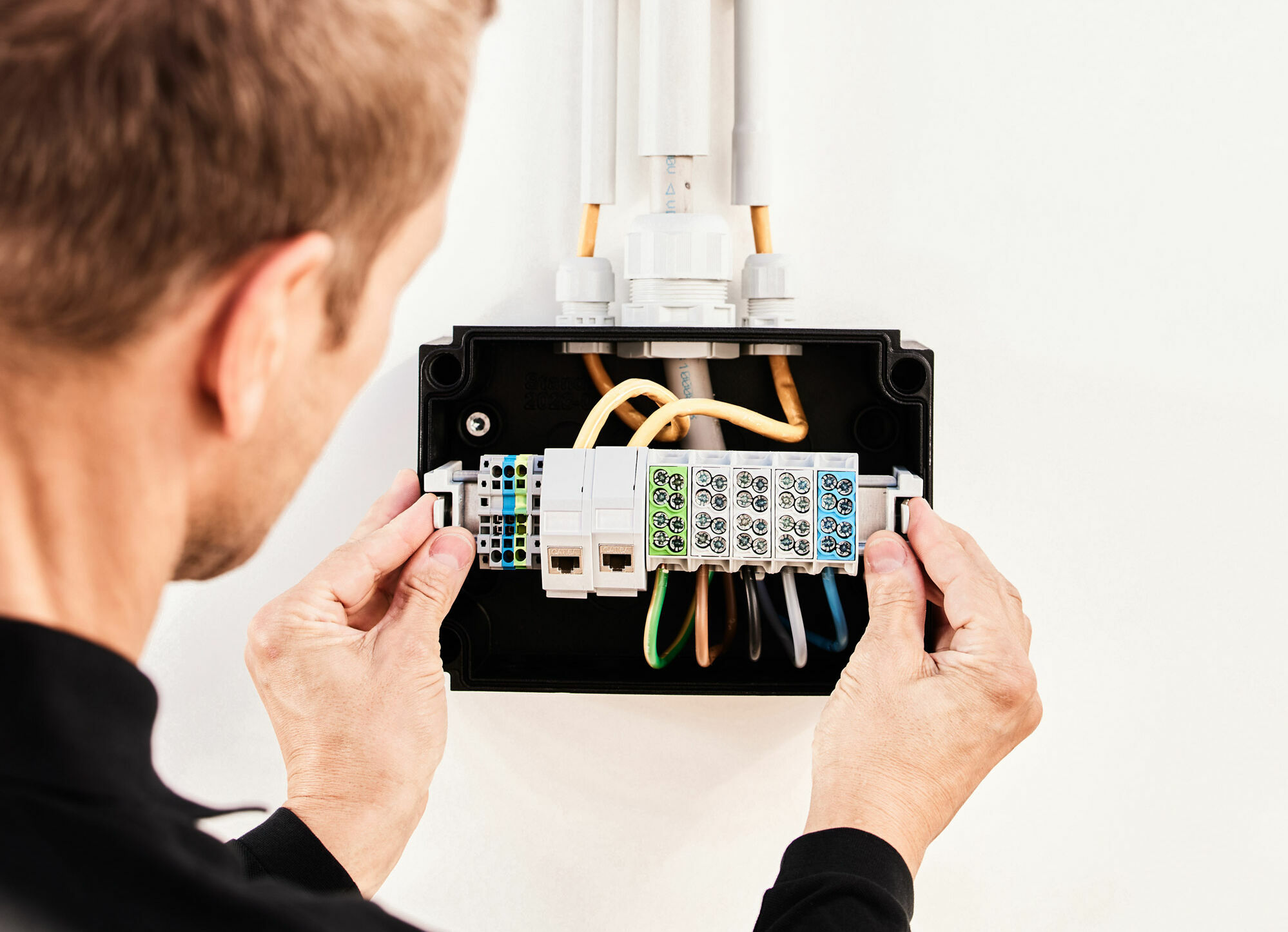

Simplified installation thanks to the MENNEKES installation box

With the innovative installation box, AMTRON® Professional Twincharge 7000 can be installed by a qualified electrician in just a few steps: simply mount the installation box and install the required supply cables, then hang the dual charging station in place, secure it and complete the final electrical connections.

This is particularly practical if you want to separate the preparatory installation work from the final commissioning in terms of timing and/or if multiple Twincharge wallboxes are to be installed at the same time. During the preparation phase, the installation box can be securely closed with the matching lid until the wallbox is installed at a later stage. The lid also proves useful in the event of maintenance or repair work, as the overall installation can continue operating without interruption until the charging station is back in service.

The practical installation box is already included in the scope of supply. It is also available as a separate accessory. The lid for the installation box can be ordered separately as an accessory if required

1. Mount the installation box

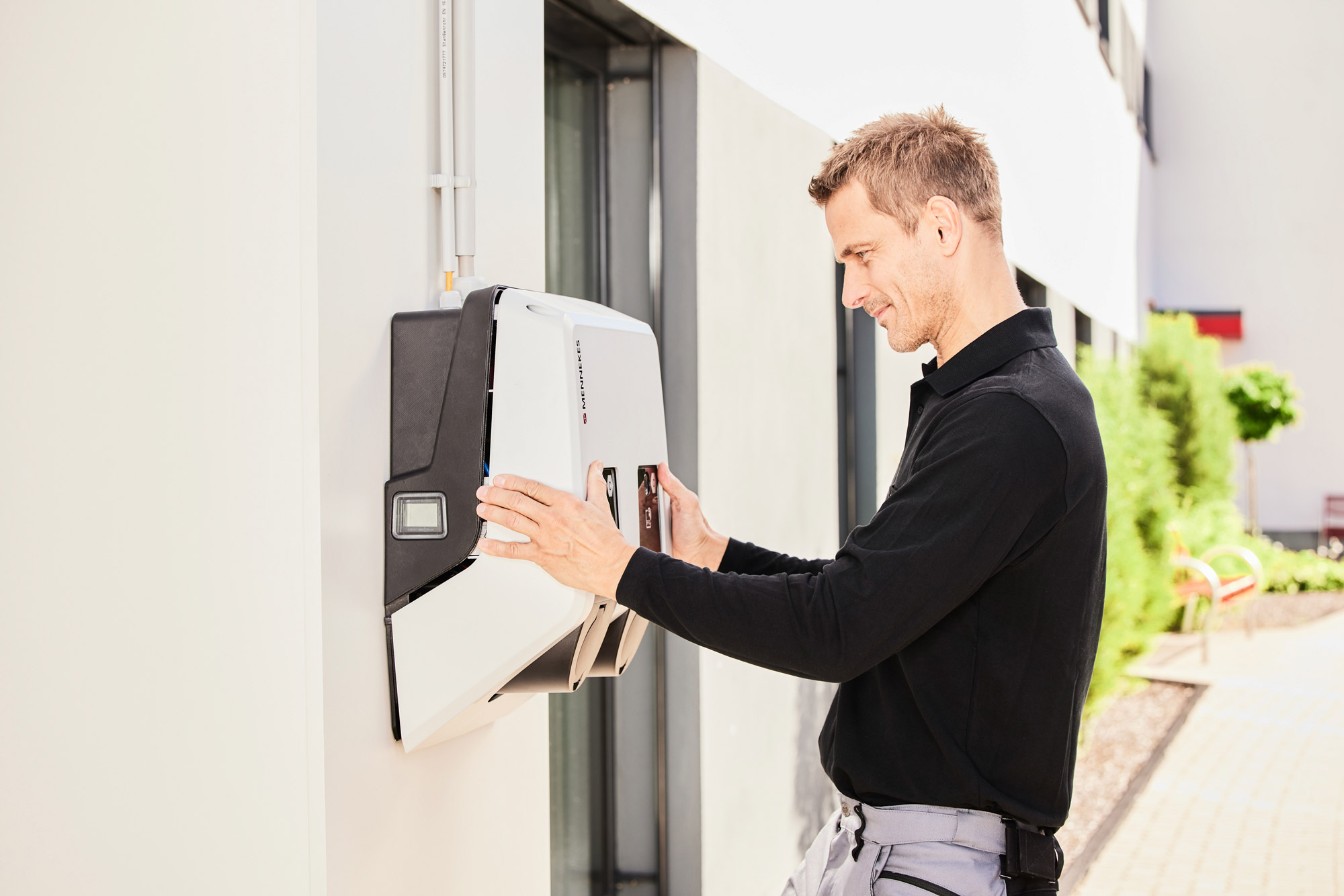

2. Mount the charging station

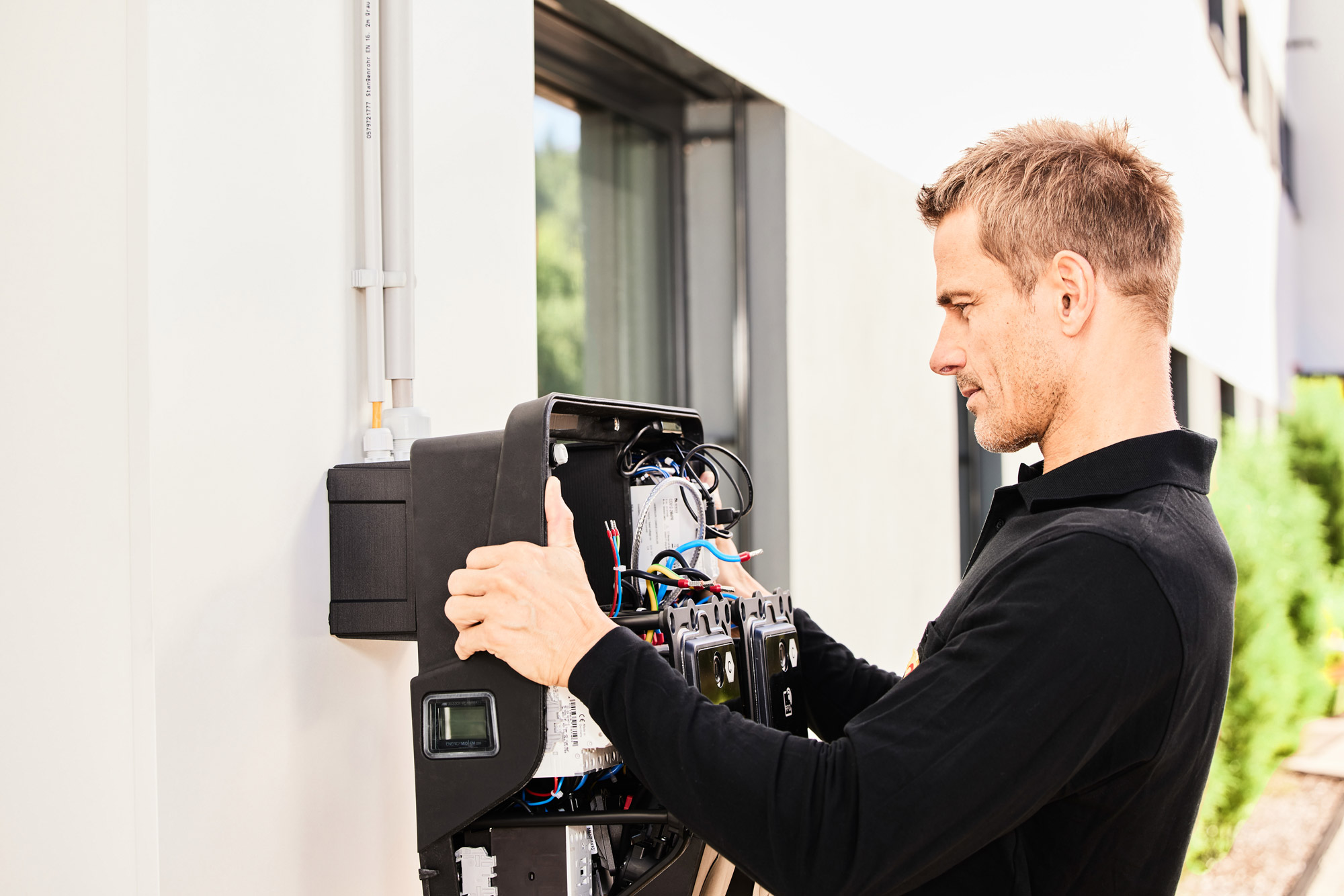

3. Complete the electrical connections
Done!

Further features

Intelligent load management

Do you operate multiple charging points to enable simultaneous charging of many electric vehicles? The AMTRON® Professional Twincharge 7000 features an automated charging and load management function, providing dynamic, phase-accurate load control for up to 100 charging points. This ensures operational reliability, even when many vehicles are charging at the same time.

Learn more about load management

Simply plug in and charge with Plug and Charge

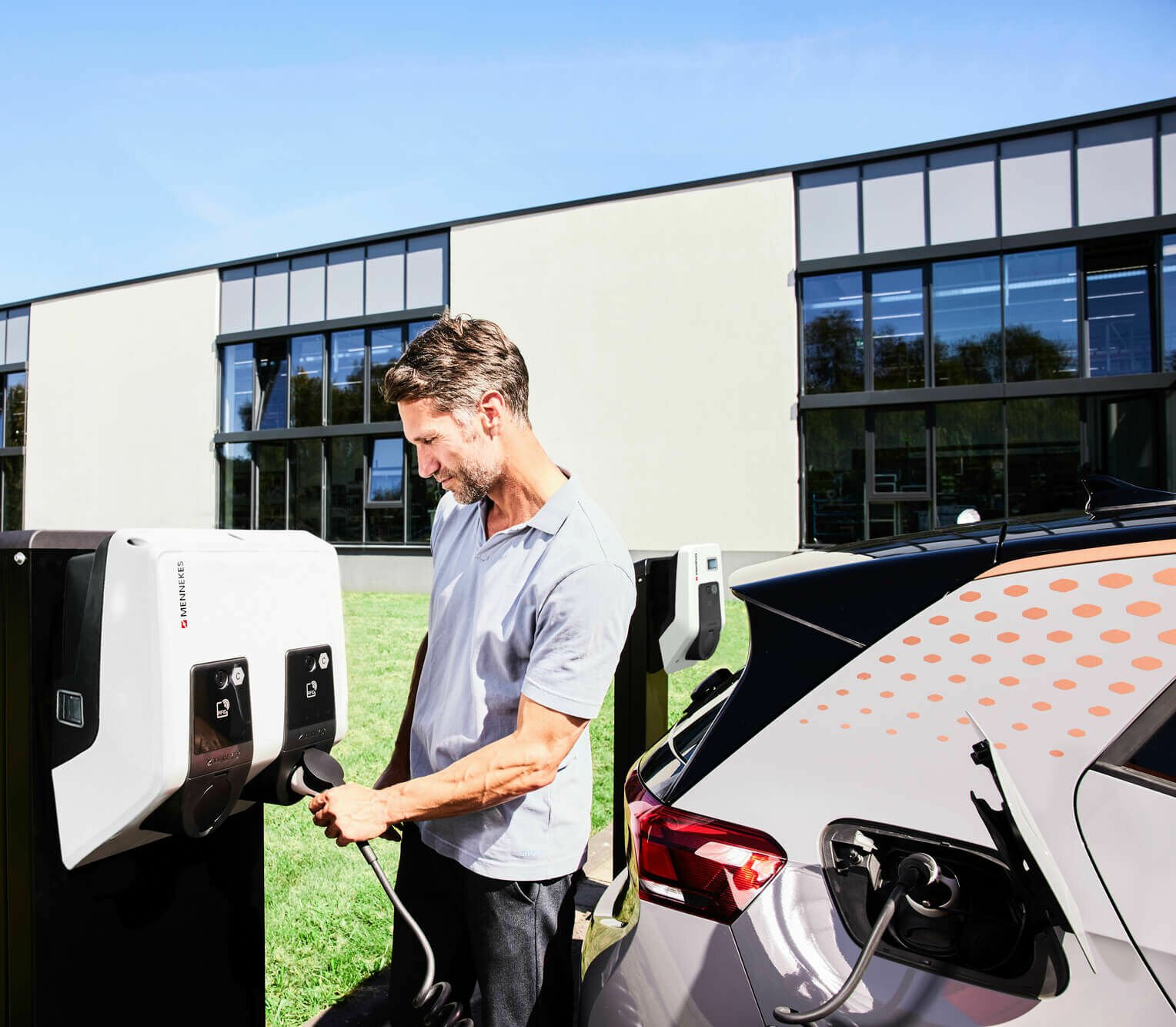

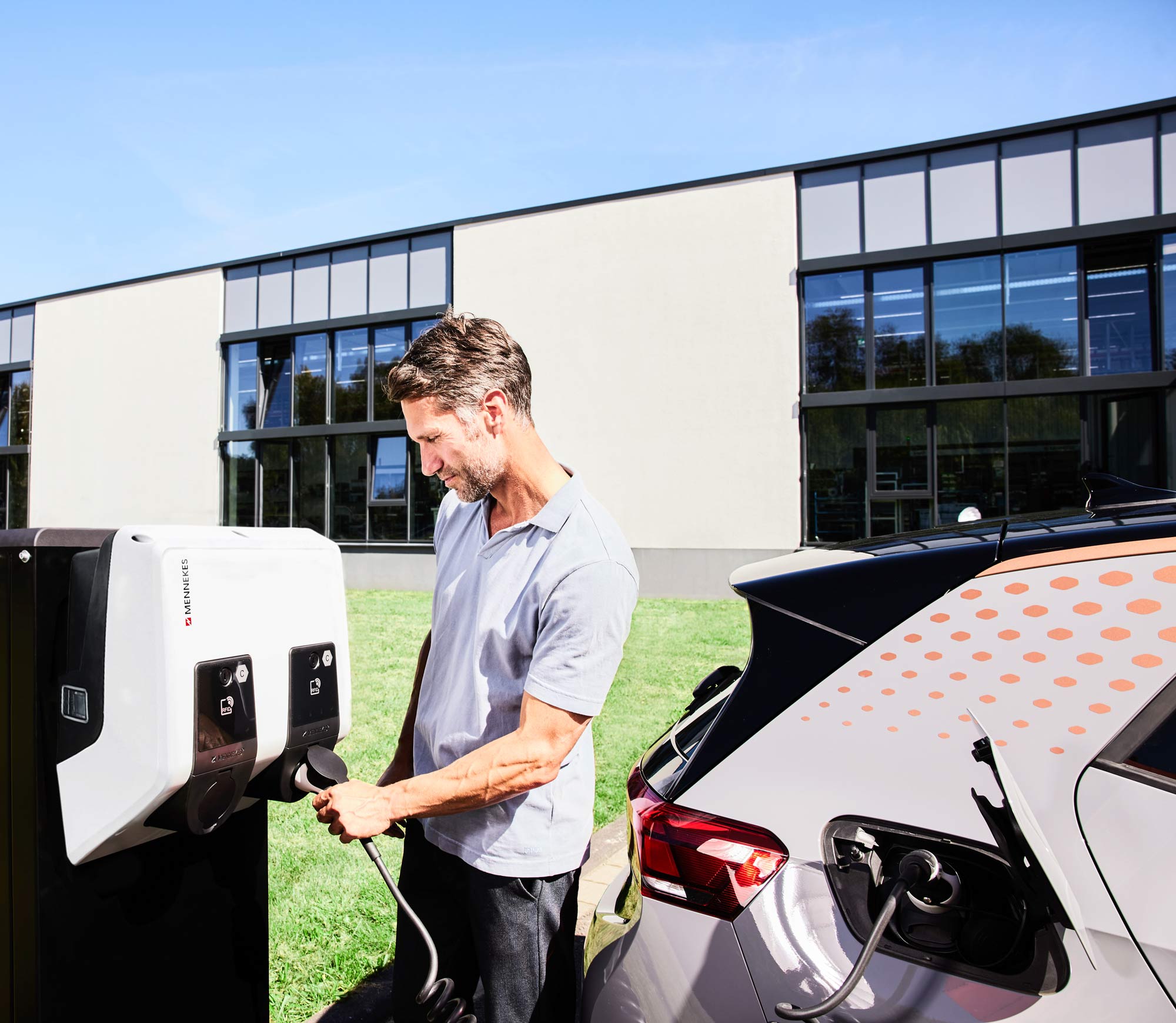

With its Plug and Charge functionality, the AMTRON® Professional Twincharge 7000 enables easy access to charging without the need for a charging card or app. Authorisation takes place automatically: a Plug and Charge-compatible electric vehicle is recognised as soon as the charging cable is connected, authenticates itself automatically and charging begins immediately.

Learn more about Plug and Charge

You may also be interested in

Energy management systems

MENNEKES charging solutions are compatible with a wide range of leading energy management systems. Our overview shows exactly which EMS solutions are compatible with your MENNEKES charging station.

Discover compatible EMS solutions

Simplified management

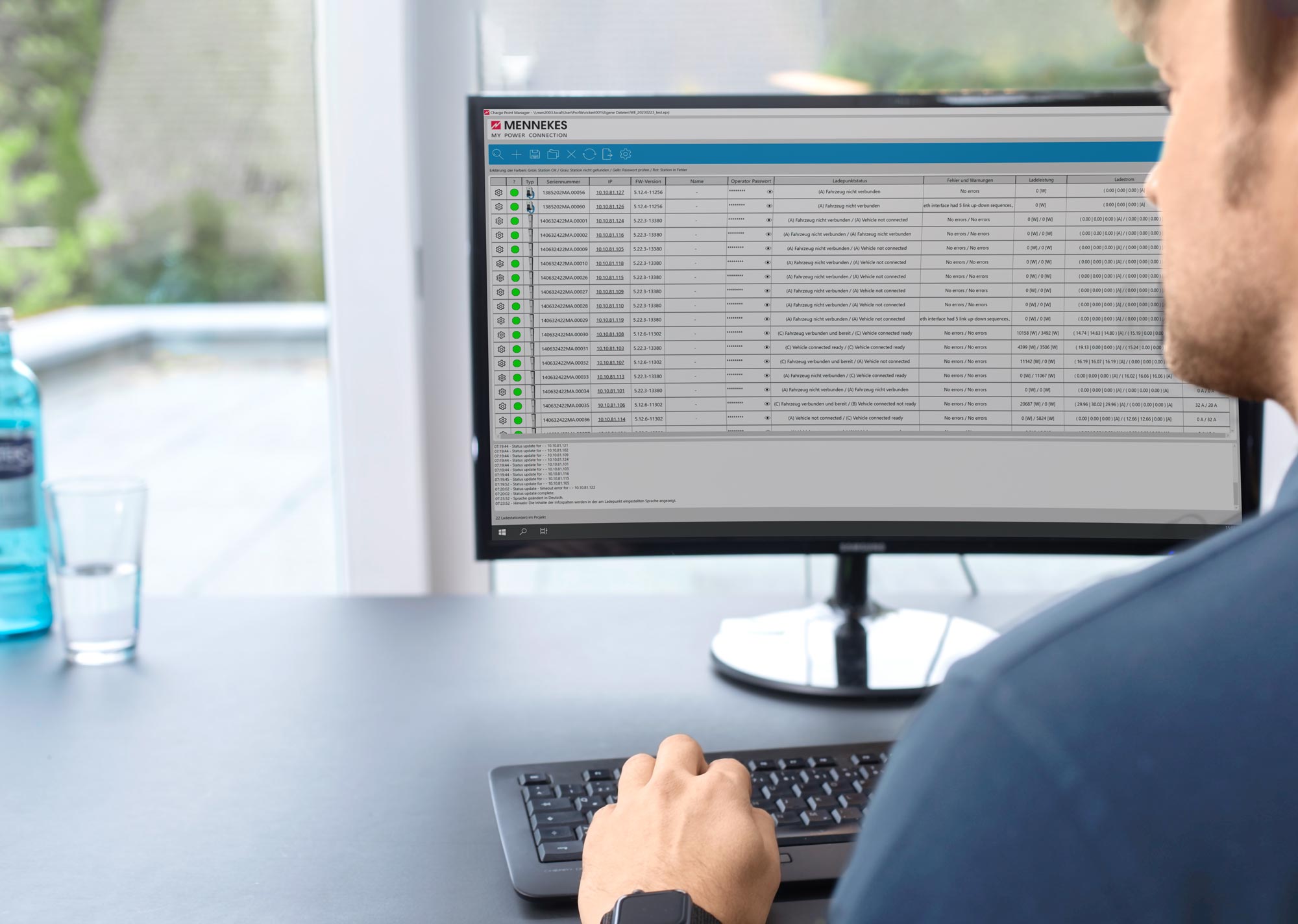

The free Charge Point Manager allows Professional charging stations to be set up, configured and managed with ease. Once configuration parameters have been defined, they can be quickly transferred to additional charging stations, saving operators considerable time during commissioning and charge point management.

Discover Charge Point Manager
