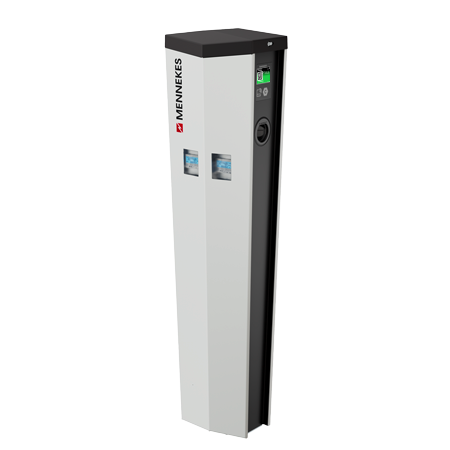

AMEDIO® Professional 7100 22 T2

The AMEDIO® Professional 7100 22 T2 charging station offers a strong overall charging infrastructure package: safe, user-friendly and future-proof with ISO 15118 support – specially developed for commercial and publicly accessible charging. The integrated 3.5-inch colour display shows all relevant information about the charging process and offers barrier-free, convenient user guidance. It also enables the display of dynamic QR codes for authorisation. The display brightness automatically adjusts depending on the ambient brightness. The integrated MID-certified meter is easy to read thanks to its high position in the device. And thanks to the optimised internal structure and the selection of state-of-the-art components, the charging system is particularly easy and convenient to service and repair. The unit is equipped with two Type 2 sockets with hinged covers, allowing convenient one‑handed operation. The charging stations can be connected to each other via LAN in order to use the free, integrated MENNEKES load management.

Access with RFID charging card
Backend

Load management
Energy management

Part no.140722422
EAN4015394316657

Details

General data

Authorisation	Autostart (without access protection) RFID Backend
ISO 15118	Plug & Charge
Load management	Static load management Dynamic load management Connection to an external EMS via Modbus TCP and EEBus
Networking	LAN via LAN to external energy management system via LAN to Professional charging systems
Protocol backend communication	OCPP 1.6j
Interface backend communication	via AMEDIO charging systems via LAN
Communication with vehicle	IEC 61851-1 Mode 3
Product colour	light gray (RAL 7035)

Electrical data

Connection	1 -phase 3 -phase
Maximum charging power per charging point	22 kW
Lightning and surge protection device	Type 1 and 2 surge arrestor combination
Personal protection	40 / 0,03A, 4p, type A
Line protection	C-32A, 3p+N, 10kA
Integrated power meter	yes
