MENNEKES AMTRON® 4You 460 11 C2 1314011205BK

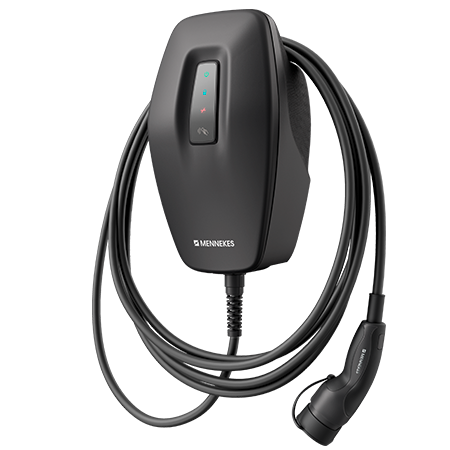

AMTRON® 4You 460 11 C2

AMTRON® 4You 460 11 C2 is an 11 kW company-car wallbox deliberately reduced to essential functions, offering an economical and future-proof solution for intelligent, reliable and transparent charging at home. It is equipped with a clearly legible MID-compliant meter for precise company-car billing. The hardware is AFIR-compliant and already prepared for the EN ISO 15118-20 communication standard that is mandatory as of 1 January 2027 and will be implemented a free software update. With PV surplus charging and app-based control – for example for configuring the wallbox, selecting different charging modes or viewing the charging history – the device offers a high level of user convenience. The wallbox provides all functions that noticeably simplify everyday use. Users conveniently operate the device via the AMTRON® 4Drivers app, while installers are provided with the AMTRON® 4Installers app for efficient configuration, commissioning and maintenance. RFID access protection, a permanently attached 6 m charging cable, a clear icon-based status display, integrated Wi‑Fi for smart connectivity and updates, as well as comprehensive safety technology – including DC residual current detection and optional surge protection – ensure a high level of user-friendliness and a reliable charging experience. The robust, matt-black front cover emphasises the understated, functional design and can be easily replaced if required. In addition, the wallbox is compatible with many common home energy management systems. Provided a stable Wi‑Fi connection is available, AMTRON® 4You 460 11 C2 can be integrated via EEBUS, Modbus TCP, SEMP or OCPP. AMTRON® 4You 460 11 C2 is manufactured with CO₂ compensation, impresses with long-lasting quality and production that is committed to responsible use of materials and energy – ready for the demands of modern electromobility.
  • Convenient solar charging with external energy meter or to a home energy management system
  • Access with RFID charging card
  • 4Drivers App
  • Load management
  • Manual company car billing and payment
  • Backend
  • Part no.1314011205BK
  • EAN4015394313007
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Application

Convenient solar charging with electricity billing

Plug device

Permanently connected charging cable (6 m)

Authorisation

Autostart (without access protection)

RFID

Backend

IOS / Android App

AMTRON® 4Drivers App

ISO 15118

Prepared for ISO 15118

Load management

Static load management

Dynamic load management

Solar charging via an upstream, external energy meter

1- / 3-phase solar charging for charging powers of 1.4 - 11 kW

Connection to an external EMS via Modbus TCP and EEBus

Networking

WIFI

Protocol backend communication

OCPP 1.6j

Communication with vehicle

IEC 61851-1 Mode 3

Prepared for ISO 15118

Product colour

black (RAL 9005)

Electrical data
Connection

1 -phase

3 -phase

Maximum charging power per charging point

11 kW

Electricity meter (MID compliant)

yes (readable from outside)

Integrated power meter

yes

Directives

AMTRON® 4You 460 11 C2 1314011205BK

Appropriate accessories

AMTRON® 4You 460 11 C2 1314011205BK

MENNEKES Meter (Modbus TCP) for load management 18662

Meter (Modbus TCP) for load management

Part no. 18662

MENNEKES Pedestal for 2x AMTRON 4Y/4B 18664

Pedestal for 2x AMTRON 4Y/4B

Part no. 18664

MENNEKES Pedestal for AMTRON 4Y/4B 18663

Pedestal for AMTRON 4Y/4B

Part no. 18663

MENNEKES AMTRON 4Y/4B RFID cards 18660

AMTRON 4Y/4B RFID cards

Part no. 18660

MENNEKES SPD AMTRON® 4Y/4B 500/700 18665

SPD AMTRON® 4Y/4B 500/700

Part no. 18665

MENNEKES Front Cover 4Y/4B matte black 18651

Front Cover 4Y/4B matte black

Part no. 18651
