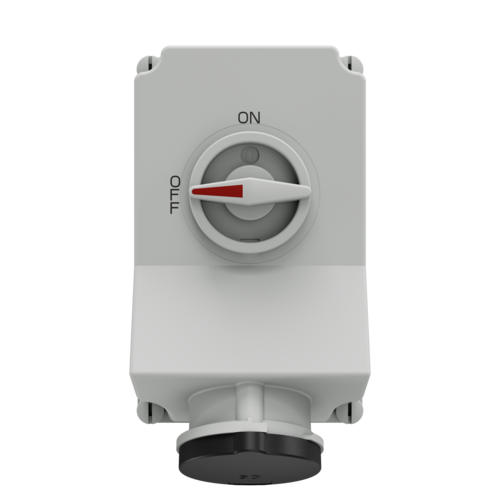

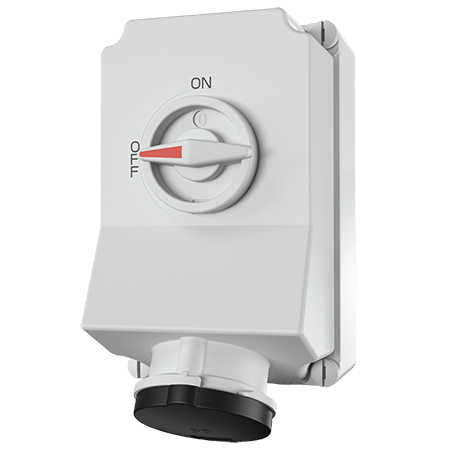

Wall mounted receptacle 6262A

Ampere 63 A

Poles

Voltage

Clock position

screw terminals
X-CONTACT®
switched

mechanical DUO-interlock
highly heat resistant contact carrier
receptacles can be padlocked

Part no.6262A
EAN4015394031949
Std. Pack. 3 Qty.

Technical specifications

Wall mounted receptacle 6262A

Ampere	63 A
Poles	5 p
Voltage	600-690 V
Clock position	5 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT®
Protection type	IP 44
Enclosure material	Plastic
Weight	2660 g
Declaration of Conformity	EAC

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted receptacle 6262A

Product info Wall mounted receptacle 6262A PDF, 173 KB

Dimensional drawing portrait Wall mounted receptacle 6262A PNG, 107 KB

Dimensional drawing landscape format Wall mounted receptacle 6262A PNG, 108 KB
